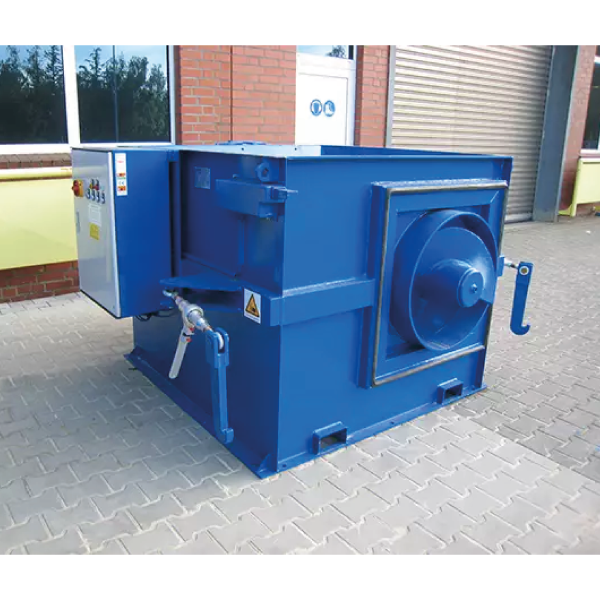

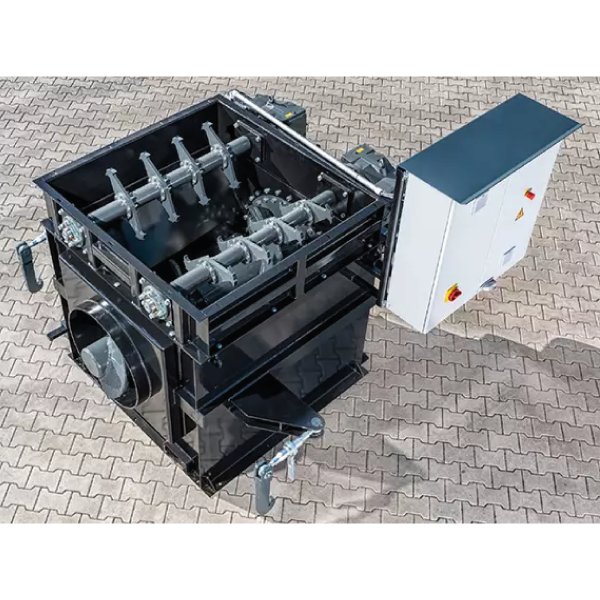

SVS “Electric Drive” static screw compactor

The eco-future of waste disposal - 100% electric.

The Ludden & Menneke’s SVS static screw compactor offers high performance compaction on a wide range of waste types including difficult materials such as pallets and crates.

With its electric drive it uses no hydraulics so is very quiet running, has zero risks of oil leaks and significantly reduced running costs as well as service and maintenance requirements.

The SVS can be continuously loaded due to its screw compaction system, making it ideal for sites requiring fast, efficient waste removal.

Key Features

  • Continuous operation screw compaction system
  • Fast, efficient and safe waste handling
  • Various loading hopper designs for ground/dock feeding by hand, bin lift, tip skip, etc.
  • Electric drive/no hydraulics
  • Low service and maintenance
  • Zero risk of oil leaks
  • Quiet running
  • Up to 50% less energy costs
  • Automatic central lubrication system with electronic monitoring
  • Freely programmable PLC controls
  • Typically reduces transport by up to 80%
  • Cut your carbon footprint
Compactor Type
Screw, Static
Waste Material
Cardboard / Paper, DMR / Recyclables, General Waste
Weekly Volume

Ludden & Mennekes’ SVS range of static screw compactors are high quality German built machines.

These machines are particularly effective at crushing and compacting heavy-duty cardboard articles and are even suitable for bales, paper, plastics, one-way pallets, crates and wood, returned goods, dough, foods and other hard-to-handle waste materials. Additionally, they are suitable where a measure of product destruction is required.

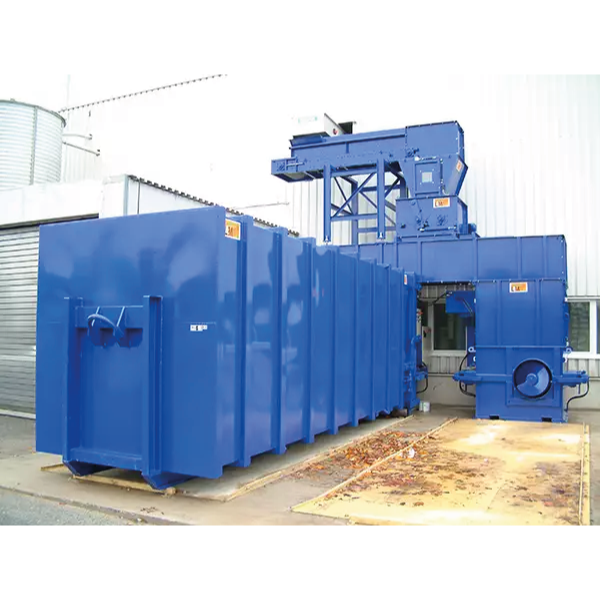

The SVS models offer high performance, small dimensions and low maintenance. They compact into closed “roll-on-off” compactor containers that are exchanged when full. This therefore leaves the compactor operational at all times.

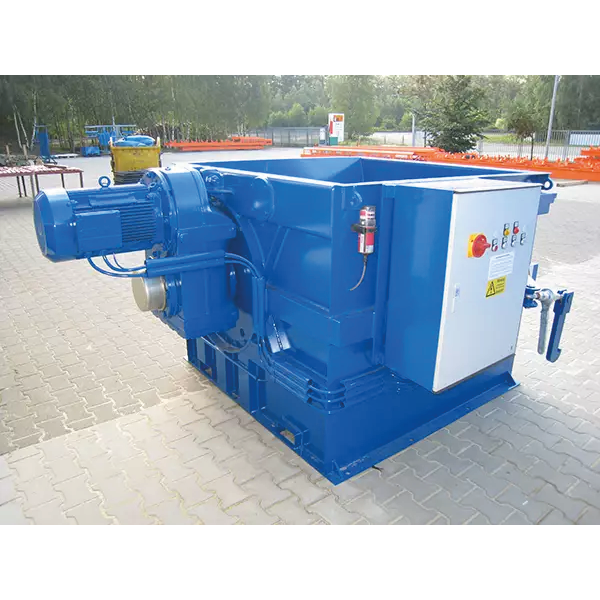

The SVS comes with a choice of motor rating, pre-full and full warnings, auto-reverse when full, and a direct drive geared motor. With its freely programmable PLC and central greasing system the machine is ideally suited to continuous operation. As standard the machines have continuously welded seams, which prevent corrosion, and are CE and GS approved.

Feeding can be by hand, bulk tipping, hydraulic tipper, chute or conveyor, and a range of force-feed devices are available to assist with loading difficult materials.

Our competitive pricing enables our clients to invest in world class German manufactured machinery that is built to last a lifetime.

Standard scope of supply:

  • Control cabinet, including control unit in compaction direction on the right side
  • Remote control
  • Operating hours counter in the control cabinet
  • Freely programmable PLC control
  • Automatic central lubrication system with electronic monitoring
  • Times can be set
  • Automatic reversing with full message
  • Frequency converter
  • Surface painted including corrosion protection class C3
  • On/Off main switch (lockable with optional padlock) on the control cabinet
  • Fault/Reset illuminated push-button (red) on the control cabinet and remote control
  • Emergency Stop push-button on the control cabinet and remote control
  • Screw On/Retour rotary selector switch on the remote control
  • 75% full indicator lamp (yellow) on the remote control
  • 100% full indicator lamp (red) on the remote control

Optional additions

  • Several coupling variants including a fully automatic version
  • Several lid variants (hinged on the backside/divided lengthwise, hydraulic, manual,..)
  • Choice of motor rating (11Kw, 15Kw, and 18Kw)
  • Individual hopper designs (eg, bifurcated hopper, wall-connected hopper,…)
  • Light barriers or ultrasonic probes as start device and/or as overfill prevention device
  • 75% and/or 100% full container warnings with signal lamp, flashlight and/or signal horn
  • GSM alarm system in various designs
  • Remote control in various designs
  • Guide rails or centering plates for exact positioning of the press container or if soil is not load-bearing
  • Varying pull-in equipment (eg, wood, PET, or PPK)
  • Longitudinal or transverse traversing units for the press container
  • Container weighing system
  • Attached bin tipper for all usual large waste containers as well as special containers
SVS 11 SVS 15
Plant length 2350mm 2620mm
Screw speed 18min-1 17min-1
Screw torque 5800Nm 8400Nm
Volume per hour 60m3 90m3
Driving power 11kW 15kW

All compactors in this series

Plant width 2500mm
Plant height 1650mm
Basic body length 1720mm
Basic body width 1690mm
Basic body height 1255mm
Filling opening L 1320mm
Filling opening W 1390mm
Filling opening H 1255mm
Discharge opening diameter 700mm
Discharge opening height 750mm
Screw Ø (from to) 750-500mm
