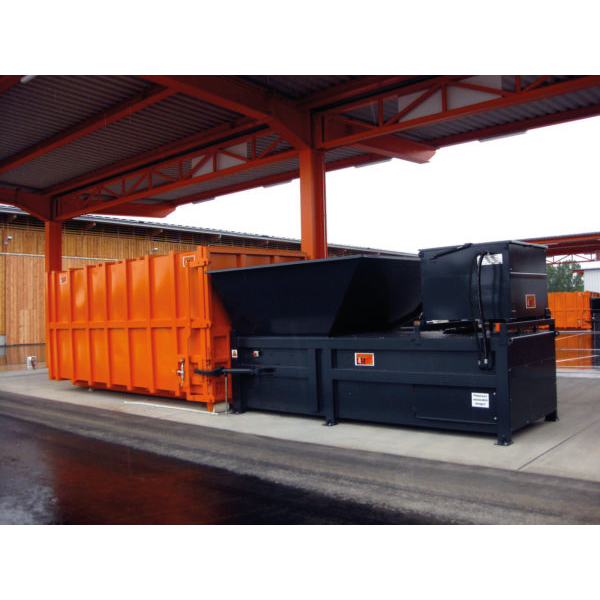

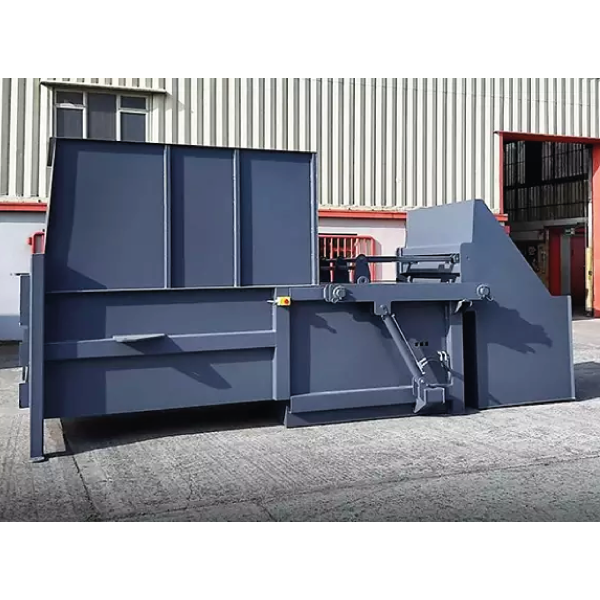

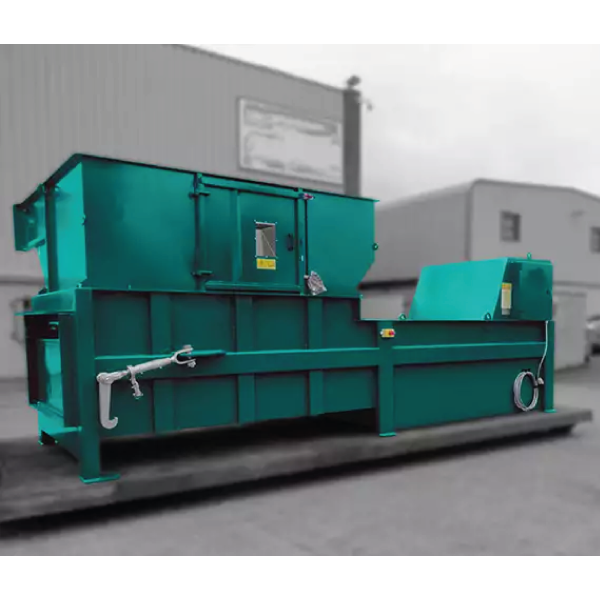

CB2100 Static Compactor

The CB2100 is the largest machine in this series, with its choice of 38 or 50 toone pressures, it is a high performance machine suitable for furniture manufacturers, high volume extraction waste, civil amenity sites, or as entry level transfer compactors.

Key features

  • Easy, safe and fast to load
  • Wide range of loading options
  • Heavy duty steelwork and workmanship
  • Fully compliant with CHEM standards and dimensions
  • Choice of 38 or 50 tonne pressures for maximum payloads and cost savings
  • Built in power pack for security and safety
  • Vandal proof main control panel enclosure
  • PLC controlled system
Compactor Type
Waste Material
Cardboard / Paper, DMR / Recyclables, General Waste

The Durapac CB2100 is the largest of our standard compactor range. Ideal for large sites, it can be loaded from ground and dock level by hand, bin/pallet/cage tipper, forklift, chute, conveyor, air system/extraction or bespoke applications. Although generally supplied where there are extreme volumes of waste, this machine is also suitable for individual items such as beds, sofas and through waste mix.

Our models are built to CHEM standards and feature a hydraulically operated “straight-push” ram, achieving up to 10:1 compaction ratios (up to 12 tonnes per bin). However, this is dependent on the compacted waste materials.

The CB2100 is the preferred choice for furniture manufacturers, high volume extraction waste, civil amenity sites, or as entry level transfer compactors.

Quality designed and built, this heavy duty, cost effective compactor will operate all day, every day processing a number of tonnes of waste per hour. With its 20 year+ lifespan, it will prove a great investment for any business looking to cut costs, increase operational efficiency and reduce their carbon footprint.

In Summary

  • Robust Design, Engineering for Long Life
  • Choice of compaction pressures – 38t and 50t
  • Additional Power Pack Options
  • Easy and Safe Operation
  • Reduced Labour Input & Running Costs
  • Reduced Transport Costs – Maximum Payloads
  • Bespoke Solutions Based Manufacturing
  • Drop forged and certified Compactor clamps and hooks
  • Fully CE compliant
  • Standard Width and Wide Body Options
  • 30 Years of Providing Waste Solutions

Optional fit outs:

  • Open Top Hopper for bulk loading
  • Enclosed hoppers with interlocked loading doors
  • Conveyor interface hoppers
  • Wheelie bin tippers
  • Through wall chute loading
  • Waste extraction system
  • Perforators, shredders or rufflers fit outs
  • Auto starting system
  • GSM modules for performance monitoring
  • Remote control station
  • Power pack oil and cooling systems
  • Guide rail and in floor plates
  • Transfer station fit out options
CB2100-38T CB2100HD-50T
Compaction force @ 200 bar (tonnes) 38 53
Motor power 11kW, 32A 11 kW, 32A
Power supply 3 PH + E + N, 400v, 50Hz 3 PH + E + N, 400v, 50Hz
Std factory set cycle time 90 seconds 60 seconds
Fast cycle options 55 seconds 46 seconds
Additional power pack options 15-22kW 15-22kW
Charge box volume 3m3 3m3
Chem volume per stroke 2.3m3 2.3m3
Cylinder bore 152 180
Compactor length 5316mm 5316mm
Compactor width (excl clamps) 1667mm 1667mm
Compactor width (incl clamps) 2645mm 2645mm
Compactor height 1570mm 1570mm
Charge box loading height 1264mm 1264mm
Chamber width 1505mm 1505mm
Chamber length 2100mm 2100mm
Chamber height 904mm 904mm
Compactor weight 4500kg 4500kg
