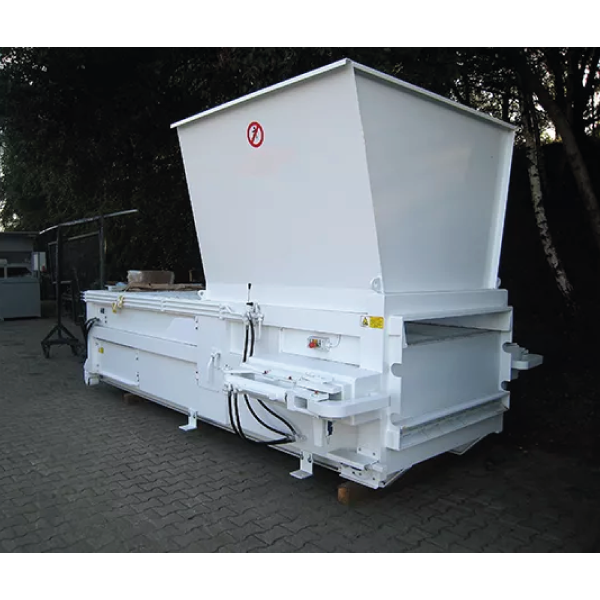

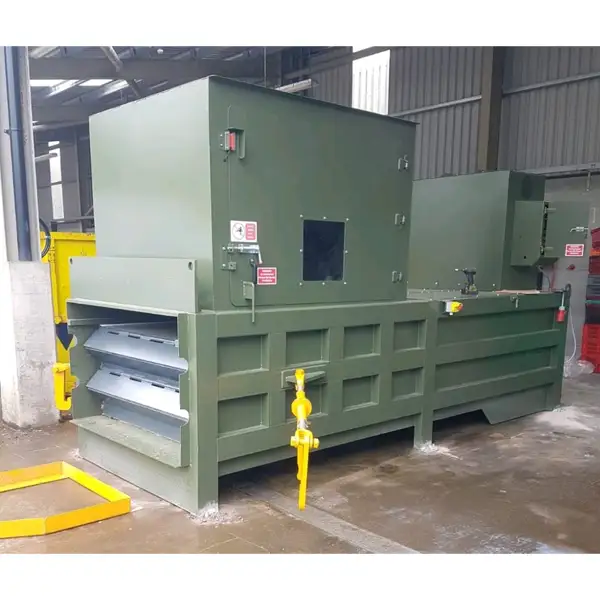

CB1500 Static Compactor

The CB1500 is a high performance compactor. With its large 1500 x 1500mm infeed and choice of 26 or 38 tonne pressures, it is easy to load and compacts maximum payloads on mixed general waste, cardboard, paper, Dry Mixed Recycling (DMR), etc.



Key features

  • Easy, safe and fast to load
  • Wide range of loading options
  • Built in power pack with all controls enclosed
  • PLC controlled system
  • Choice of 26 or 38 tonnes pressures for maximum payloads and cost savings
  • Robust design and heavy duty construction
  • Built to CHEM specification
Compactor Type
Static
Waste Material
Cardboard / Paper, DMR / Recyclables, General Waste
Weekly Volume

The Durapac CB1500 is one of our top selling compactors for industrial and commercial operations. Its 1500 x 1500mm infeed, 400mm ram penetration and choice of 26T and 38T pressures, provide maximum weight payloads, making it the perfect choice for all kinds of waste.

The CB1500HD-38T is especially effective with difficult to compact, light but bulky materials such as paper, cardboard, DMR and plastics. Loading options include by hand, tip skip, bin lifter, air extraction, chute and conveyor. Quality workmanship and a designed 50,000 hour operating life guarantee the Durapac CB1500’s place leading the market.

In Summary

  • Reduced waste collection costs
  • Designed with maximum operator safety in mind
  • Low running costs with low energy power pack systems
  • Low energy carbon footprint
  • Easy to operate and load
  • Reduced manual handling and risk to staff
  • Streamlined operations
  • Maximum payload on each lift
  • Maximum performance and life long reliability
  • Choice of compaction pressures – 26t and 38t
  • Galvanised hooks and container ratchets
  • Designed and manufactured to EU machinery directives and certified CE compliant

Optional fit outs:

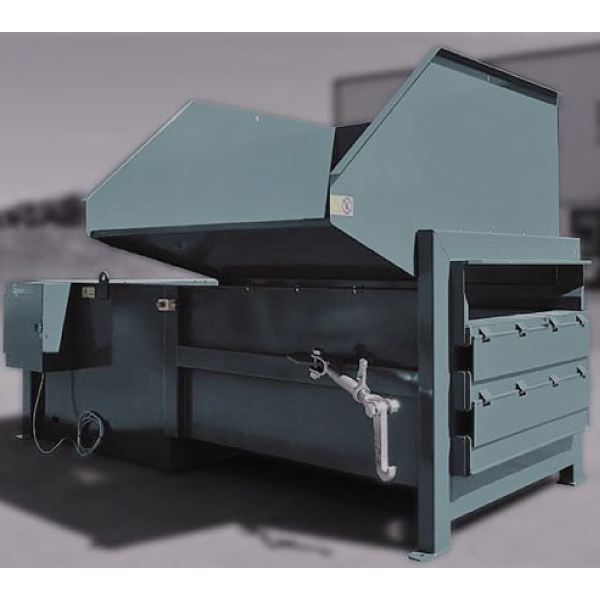

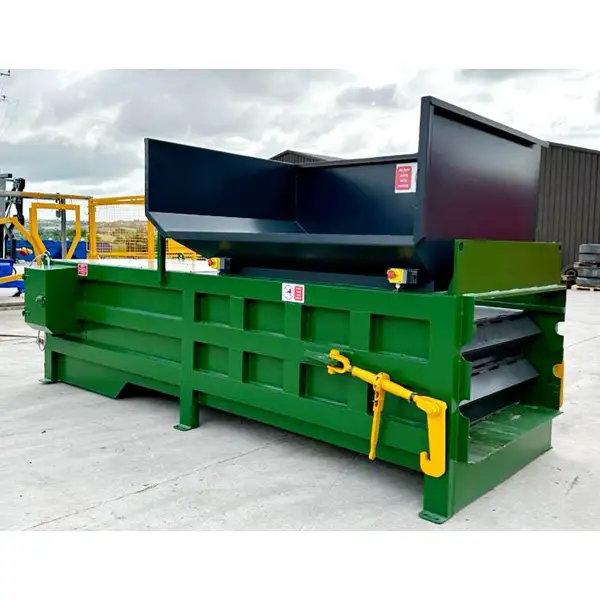

  • Open Top Hopper for bulk loading
  • Enclosed hoppers with interlocked loading doors
  • Conveyor interface hoppers
  • Wheelie bin tippers

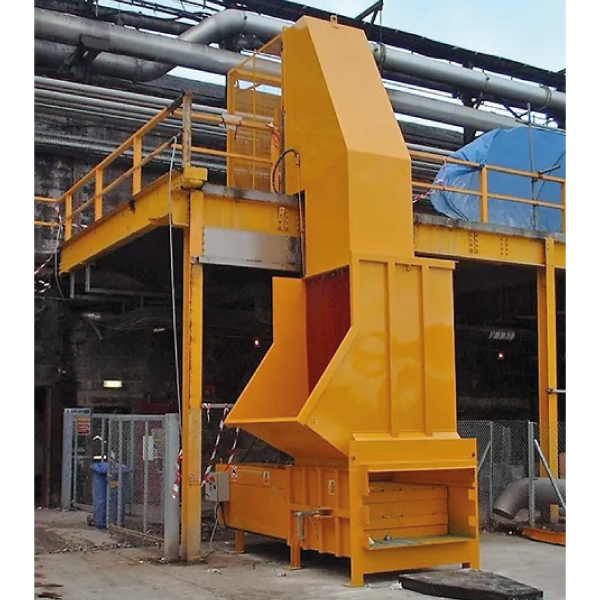

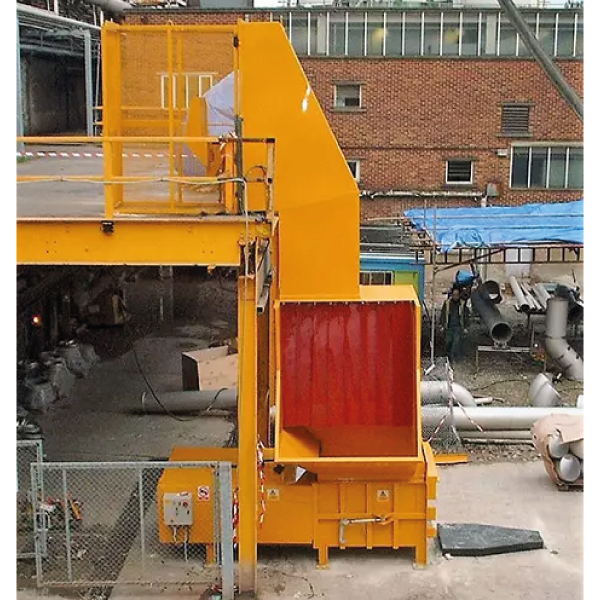

  • Through wall chute loading
  • Waste extraction system
  • Perforators, shredders or rufflers fit outs
  • Auto starting system
  • GSM modules for performance monitoring
  • Remote control station
  • Power pack oil and cooling systems
  • Guide rail and in floor plates
CB1500-26T CB15000HD-38T
Compaction force @200 bar (tonnes) 26 38
Motor power 5.5kW, 16A 5.5kW, 16A
Power supply 3 PH + E + N, 400v, 50Hz 3 PH + E + N, 400v, 50Hz
Std factory set cycle time 88 65
Fast cycle options 55 40
Additional power pack options 11-15kW 11-15kW
Charge box volume 2.15m3 2.15m3
Chem volume per stroke 1.64m3 1.64m3
Cylinder bore 125 152
Compactor length 4000mm 4000mm
Compactor width (excl clamps) 1667mm 1667mm
Compactor width (incl clamps) 2645mm 2645mm
Compactor height 1570mm 1570mm
Charge box loading height 1264mm 1264mm
Chamber width 1505mm 1505mm
Chamber length 1500mm 1500mm
Chamber height 904mm 904mm
Compactor weight 3250mm 3250mm




Brochure / Documentation

Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
