Home / Baling Machines / Multi Chamber Balers / MK1100 twin long stroke

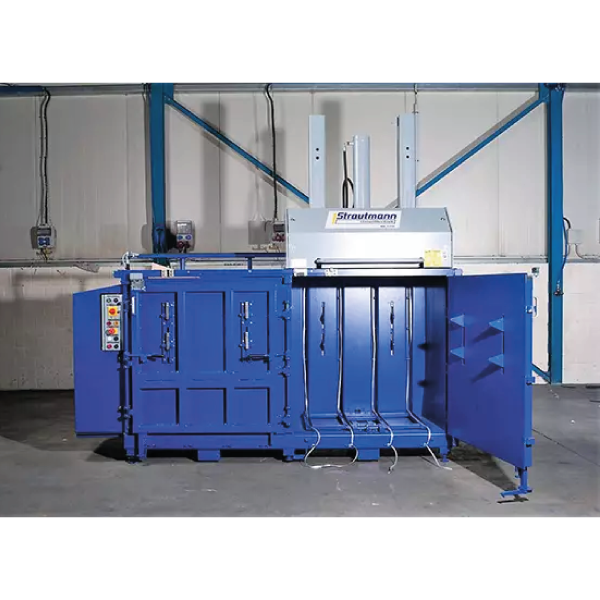

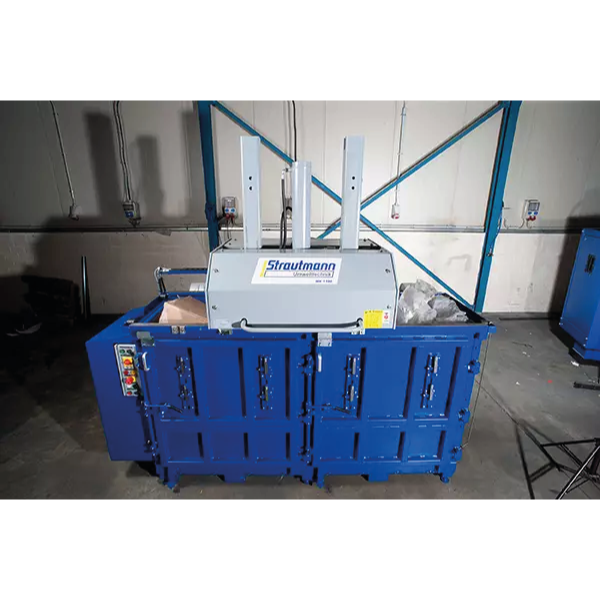

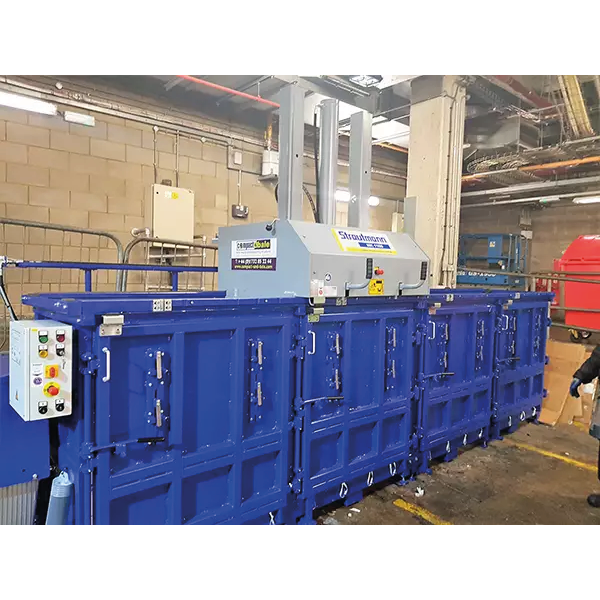

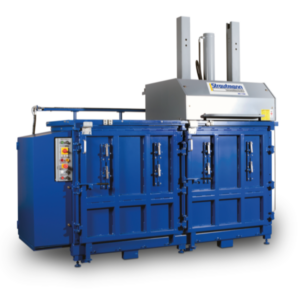

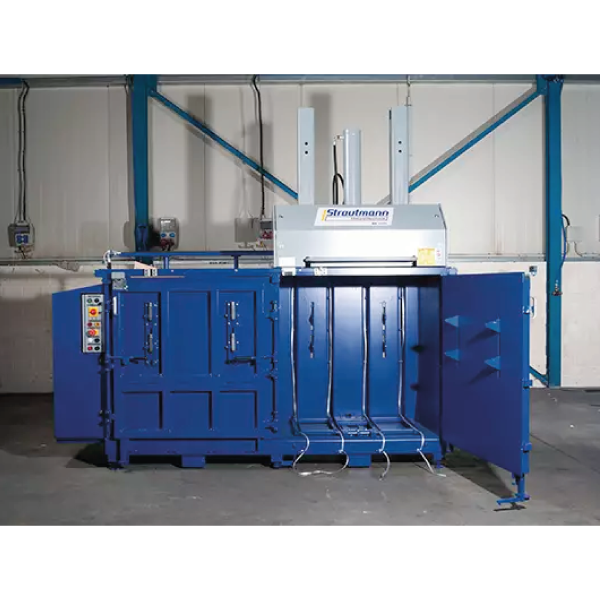

MK1100 twin long stroke

A powerful long stroke baler for even the toughest to bale materials.

Ideal for busy operations that generate multiple waste streams that need to be dealt with quickly and efficiently “at source”, the MK1100 long stroke can be supplied with 2-6 chambers. With its long stroke ram, the press plate descends an extra 300mm into the bale chamber enabling it to make highly dense and heavy bales of cardboard, paper, polythene film, PP bulk bags, Tetrapak® cartons, PET bottles, drinks cans & HDPE bottles/drums/kegs and more that typically weigh 200-300kg and are tied off with low-cost, easy to store bale twine or strapping, that is quick, clean, and safe to use in all environments.

Improve your operational efficiency, recycle your waste, cut costs and free up your time from waste handling to profitable work.

Designed for a 50,000 operating hour working life, this one baler will enable you to do the right thing first time with medium to high volumes of multiple materials, solving your waste handling and recycling problems.

Key Features

  • Revolutionise your recycling
  • Do the right thing first time
  • Handles multiple waste streams including hard to bale materials
  • Large, top loading feed chambers
  • Small footprint – do a lot in a little!
  • Ideal for baling “at source”
  • Low operating costs
  • Uses low cost, easy to store, clean bale twine or strap
  • Free your staff for profitable work
  • Sell your bales and turn waste cost into profit

Bale Weights
250kg - 300kg
Material To Recycle
Cardboard / Paper, PET Bottles / Drinks Cans, Plastic / Film
Weekly Volume

The Strautmann MK1100 long stroke twin chamber baler has a 300mm longer press stroke than the standard MK1100 machine.

As with the standard model, this machine is ideal for sites generating two or more recycling streams, enabling producers of medium to high volumes of cardboard, polythene, paper, PET bottles, as well as PP bulk bags, aluminium drinks cans, paint cans, tins, HDPE containers and other compactable waste to cut costs and improve their operational efficiency.

Loading is quick and easy through its large feed openings.

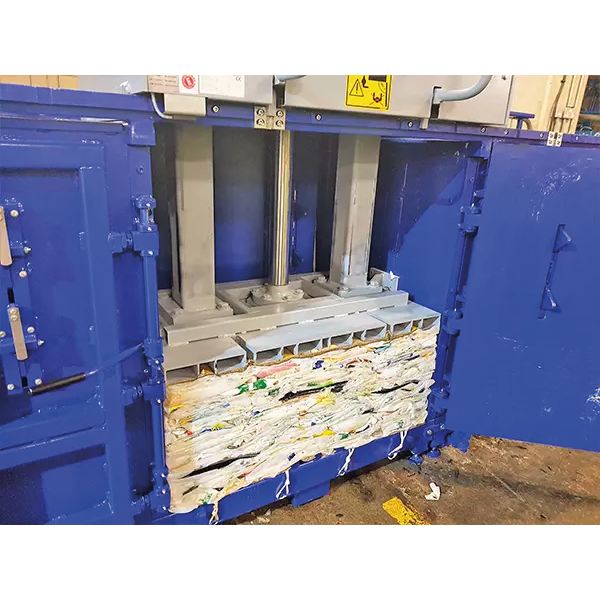

With 20t force and its long stroke, it produces compact bales weighing 200-300kg depending on material, that are tied off with low-cost, easy to store, easy to use, safe and clean bale twine or strapping.

With its heavy duty build and high operator comfort and safety, the MK1100 long stroke will turn your waste costs into profit!

In Summary

  • Proven German manufacturer
  • Heavy duty design, proven long life
  • Available with 2-6 chambers
  • Material selection switch
  • Bales up to 300kg
  • Low power consumption 4kw motor
  • Large infeed aperture
  • Auto cycle down and return
  • Fast cycle time of 33 seconds
  • Bale full indicator for uniform bales
  • Auto bale eject
  • Push button controls with diagnostics
  • Safe bale door latch system & interlocks
  • Easy and safe twine threading, tie off bales in minutes
  • In or outdoor installation
  • Space saving design
Power supply 400V, 50Hz, 16A
Electrical power 4kW
Pressing force 20t
Press stroke 1000mm
Machine weight 1834kg
Transport dimensions (L x W x H) 2940 x 1280 x 2680mm (1960mm lowered)
Filling opening 1100 x 700mm
Cycle time 33 seconds
Bale weight 250kg
Bale size (L x W x H) 1130 x 730 x 800mm
Bale tying Strapping with four twines per chamber
