Home / Baling Machines / Automatic Balers / CB-L Channel Balers

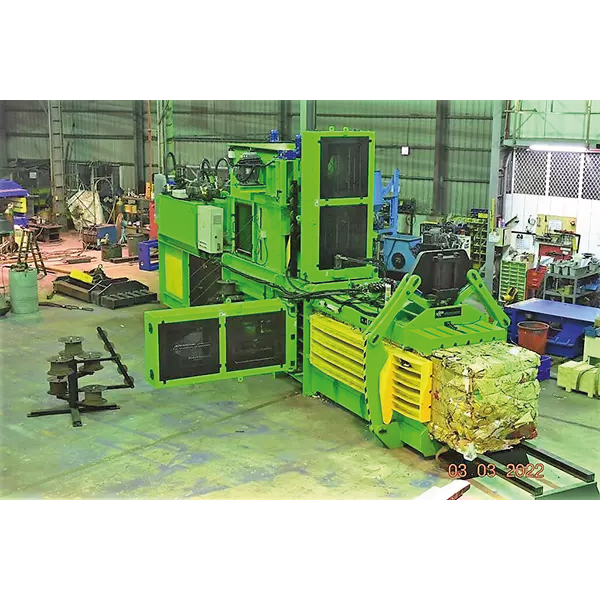

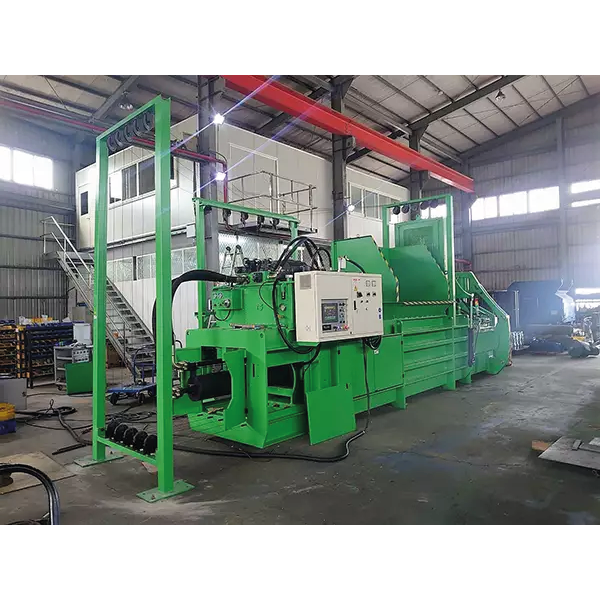

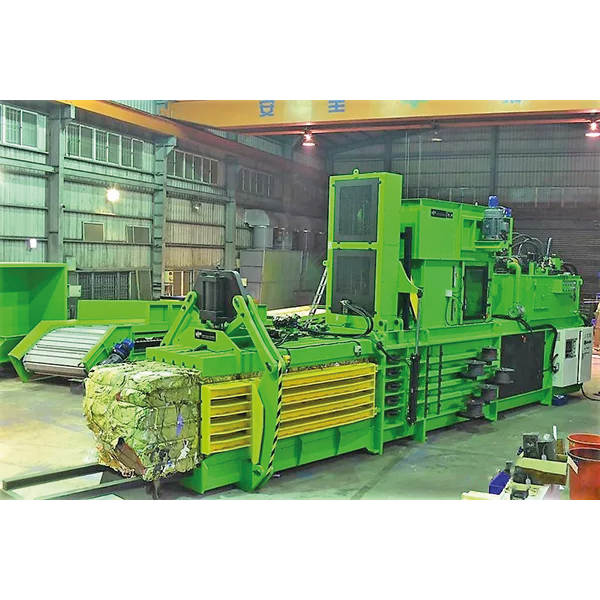

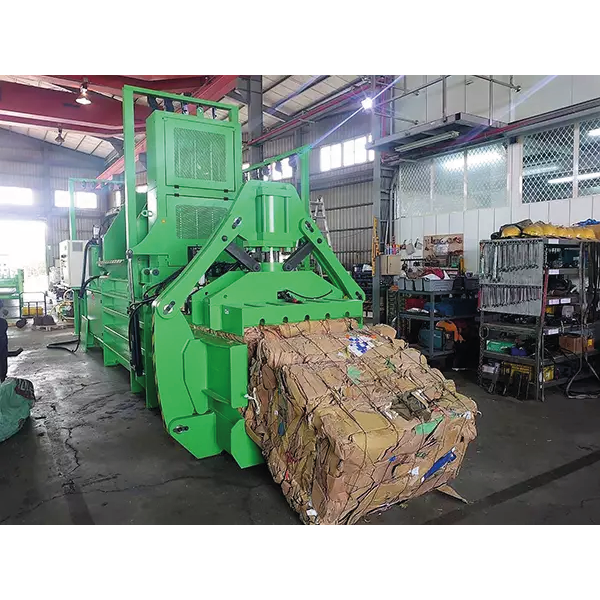

CB-L Channel Balers

Our largest series, typically producing bales of 700-1000kg at throughputs of up to 25 tph.

The Durapac CB-L range of fully automatic balers are the high performers of our range. They are perfect for the largest waste and recycling operations that need continuous high-speed bulk baling.

With their 1050 x 2400mm feed aperture and high press force that, depending on motor/power choice and materials, will process 12-25 tonnes per hour, producing dense bales weighing up to 1000kg.

Key features

  • 700-1000kg bale weights
  • 1100 x 1100 x 1200~1800mm bale size
  • 12-25 tph throughput
  • 1050 x 2400mm feed aperture
  • 120/150t press force
  • 2×30/2×45/3×45 kW motor options
  • 20 years+ proven manufacturer
  • Hardox/castellated floor
  • Fully CE compliant
Bale Weights
700kg - 1000kg
Material To Recycle
Cardboard / Paper, PET Bottles / Drinks Cans, Plastic / Film
Weekly Volume

The Durapac CB-L Channel Baler is a high quality, continuous feed, fully automatic baler with a large feed aperture and high press force that, depending on motor/power choice and materials, will process typically 12-25 tph of cardboard, paper, polythene film, hard plastics, PET bottles, drinks cans, MSW/RDF/SRF, etc.

Its heavy duty build quality, components and proven design ensure reliable performance, low OPEX and a long working life in even the most demanding environments.

The Human interface/control panel incorporates full error diagnostics, intuitive controls and multi material programming. This guarantees easy operation, troubleshooting and simple maintenance.

Ideal for baling large sizes and volumes of materials at the largest waste and recycling operations, the Durapac CB-L Channel Baler offers easy and safe operation and high performance.

In Summary

  • 20 years+ proven manufacturer
  • Hardox/castellated floor for long and durable life
  • Bespoke machine build specific to your needs
  • Low maintenance, low OPEX design
  • Unique tying system prevents wire slip and jams
  • Horizontal/vertical/cross tie options
  • Easy access press ram
  • Manufactured from Japanese steel
  • Mitsubishi PLC
  • Parker hydraulics
  • Human operator interface/controls
  • Remotely programmable
  • Interlocked maintenance access doors
  • Raised bale floor for ease of cleaning
  • Fully CE compliant
  • Wide range of loading hoppers/chutes
  • Over side or rear feed conveyors – in or above floor
  • PET piercers and newspaper/magazine preconditioners
  • Automatic de-blocking system
  • Wheelie bin tippers/safety cages
  • Wire coils or formers
  • Vertical/horizontal/cross tie
  • Various bale run out tables
  • Hardox steel upgrades

All models come with options of horizontal, vertical or cross wire tie.

Press force 120/150t
Motor power 2×30/2×45/3x45kW
Bale size (W x H x L) 1100 x 1100 x 1200~1800mm
Bale density 700-1000kg
Main cylinder diameter 250/300 x 3000mm
Opening size 1050 x 2400mm
Layout dimension 9800 x 3200 x 3750mm
Number of wire ties 5 vertical, 5 horizontal
Oil reservoir 2000/3000/4000L
Throughput approx 12-18/15-20/20-25 tonnes per hour
Machine weight 25/26/28t
