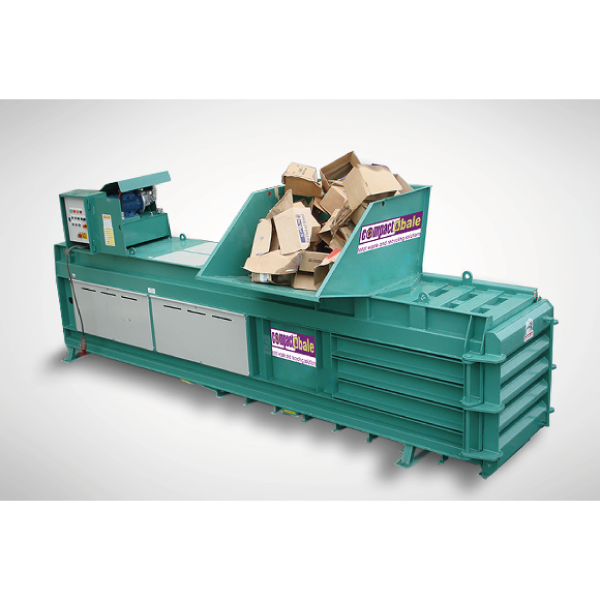

CB44 Semi Auto Baler

The CB44 semi-automatic baling press is ideal for sites with limited space but requiring high performance and throughput. This machine is suitable for a wide range of materials from card to PET bottles.

Key Features

  • Easy, safe and fast to load
  • Readily accepts large size/volume materials
  • 750 x 1100mm bale size
  • Makes 24 tonne payloads
  • 38t pressure
  • Maximum revenues for bales
  • High cost savings in staff and logistics
Bale Weights
350kg - 450kg
Material To Recycle
Cardboard / Paper, PET Bottles / Drinks Cans, Plastic / Film
Weekly Volume

The CB44 is a closed end semi-automatic horizontal baler fitted with a hydraulically clamped and released side hinged end door for bale discharge. Ideal for sites with limited space but requiring high performance and throughput, the CB44 is easy, fast and safe to use and can be loaded by hand, bin lifter, conveyor or chute.

Fitted with a full stroke, full eject ram, it produces cardboard bales up to 500kg in weight (depending on bale length) and will also bale a wide range of materials including films, PET bottles, hard plastic, cans, shredded paper, and more.

Loading large size or high volumes of materials is safe and easy through the large feed opening.

In Summary

  • Save labour costs with fast, easy loading of bulky materials
  • Save space, time and money and use less baling wire with high density bales
  • Makes square edged bales which are easy and safe to stack and store
  • Reduce power consumption and costs with our high efficiency power-pack design and motors
  • Gain maximum rebates and minimum transport costs with mill quality bales
  • Robust, heavy duty design, quality engineered for a long life
  • Proven with over 30 years of manufacture and 100s of installations
  • Vertical (Portcullis type) hydraulic end door
  • Bales up to 500kg
  • Fast cycle time of 40 seconds
  • Low energy motor
  • High and low pressure baling modes
  • 4 or 5 wire horizontal tying
  • Hardox floor and press plate base
  • “V” shaped serrated, chamfered shear blades
  • PLC control and error diagnostics
  • Enclosed power pack and control panel – weather and vandal proof

Optional fitouts:

  • Bin tippers for 120-1100L wheeled carts
  • Fast cycle options from 54-36 seconds
  • Range of motor options
  • 5 wire horizontal ties
  • Text & email GSM notification system
  • Custom hopper design and fit out
Bale size  750 x 1100mm
Bale weight 500kg (depending on material)
Feed opening 1350 x 700mm
Power supply 5.5kW, 32A
Motor power 3 PH + E + N, 400V, 50Hz
Wire tying 4 tie slots (horizontal)
Baling wire holder Optional
Bale counter and hours run feature Optional
Compaction pressure 38t
Standard cycle 60 seconds
Fast cycle 40 seconds
Overall length 5696mm
Overall width 1385mm (excluding hopper)
Overall height 2190mm

Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
