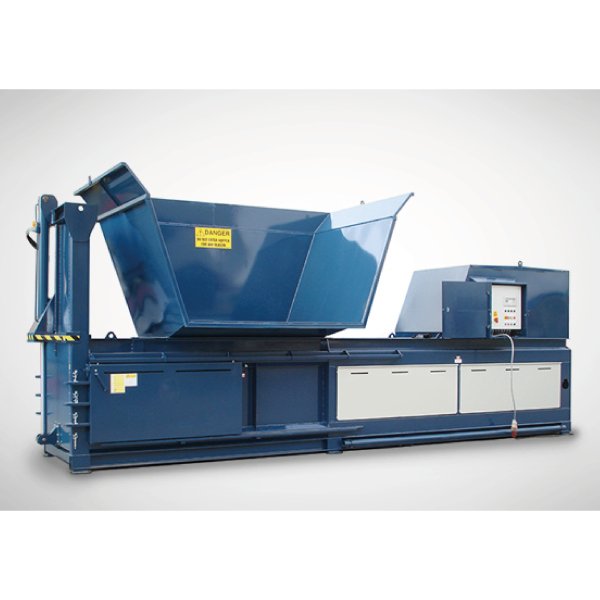

CB65Wt Semi Auto Baler

A heavy duty, semi automatic baler designed specifically for the Waste & Recycling Industry.

The CB65WT baler is specifically designed the Waste & Recycling Industry, with a full stroke/full eject ram that makes it highly effective for the baling of materials including cardboard, paper, cores, PET, film, cans, TetraPak®, hard and soft plastics, drums and kegs (plastic/steel), IBC bags, carpet, astroturf and more.

Key Features

  • Easy, safe and fast to use
  • Readily accepts large size/volume materials
  • 1100 x 1100 x 1600mm bale size
  • Makes 24 tonne payloads
  • 80t pressure
  • Maximum revenue for bales
  • High cost savings in logistics and staff labour
Bale Weights
700kg - 900kg
Material To Recycle
Cardboard / Paper, PET Bottles / Drinks Cans, Plastic / Film
Weekly Volume

The Durapac CB65WT baler is specifically designed for the Waste & Recycling Industry, proven with 100s of installations around the UK.

Weighing 10.5 tonne in standard fit out, it is quality engineered and designed for a 50,000 hour working life, even in the most demanding industrial baling operations.

Because of its massive in-feed chamber, full stroke ram, V shaped/serrated shear system, Hardox floor and 80 tonne compaction force it is the perfect baler for bulk loading and high throughputs of a range of recyclable materials.

These features allow the CB65-WT to make bales of up to 900kg, and handle a wide range of materials including cardboard, cores, paper, polythene films, hard plastics, PET, cans, steel drums, IBCs, light metals, car bumpers, astro-turf, PP bags, hessian sacks, carpet and mixed waste.

The CB65WT can be loaded from ground and dock level by hand, bin/pallet/cage tipper, forklift, chute, conveyor, air system/extraction, or bespoke applications.

Typical users of this machine include waste and recycling companies, shopping centres, distribution centres, manufacturers and local authorities.

In Summary

  • Save labour costs with faster loading and fast running cycles
  • Save space, time and money and use less baling wire with high density bales
  • Make square edged bales which are easy and safe to stack and store
  • Reduce power consumption and costs with our high efficiency power-pack design and motors
  • Gain maximum rebates and minimum transport costs with mill quality bales
  • Robust, heavy duty design, quality engineered for a long life
  • Proven with over 30 years of manufacture and 100s of installations
  • Vertical (Portcullis type) hydraulic end door
  • Bales up to 900kg
  • Fast cycle time of 56 seconds
  • Low energy motor
  • High and low pressure baling modes
  • 4 or 5 wire horizontal tying
  • Hardox floor and press plate base
  • “V” shaped serrated, chamfered shear blades
  • PLC control and error diagnostics
  • Enclosed power pack and control panel – weather and vandal proof

Optional fitouts:

  • Bin Tippers for 120-1100L wheeled carts
  • Fast cycle options from 54-36 seconds
  • Range of power pack (18-22kW) and motor options
  • 5 wire horizontal ties
  • Text and email GSM notification system
  • Custom hopper design and fit out
Bale size (H x W x L) 1100 x 1100 x 1600mm
Bale weight 900kg (dependent on material)
Feed opening 1750 x 1050mm
Power supply 15-18kW, 60A
Motor power 3 PH + E + N, 400V, 50Hz
Noise level 80 d BA
Wire tying 4 tie slots (horizontal)
Baling wire holder STD
Bale counter and hours run feature STD
Compaction pressure 80t
Standard cycle 90 seconds
Fast cycle 56 seconds
Overall length 7715mm
Overall width 1650mm (excluding hopper)
Weight 10,500kg


Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
