The rise of the AI baler.

Key Features

  • Large feed aperture
  • Material pre-breaking rotor
  • Compact 11 m² footprint
  • Semi-automatic bale tie off
  • Mill Size 400kg saleable bales
  • Complete operator safety
  • Removes the need for repetitive, unpleasant manual labour
  • Removes dependence on potentially hard-to-find staff

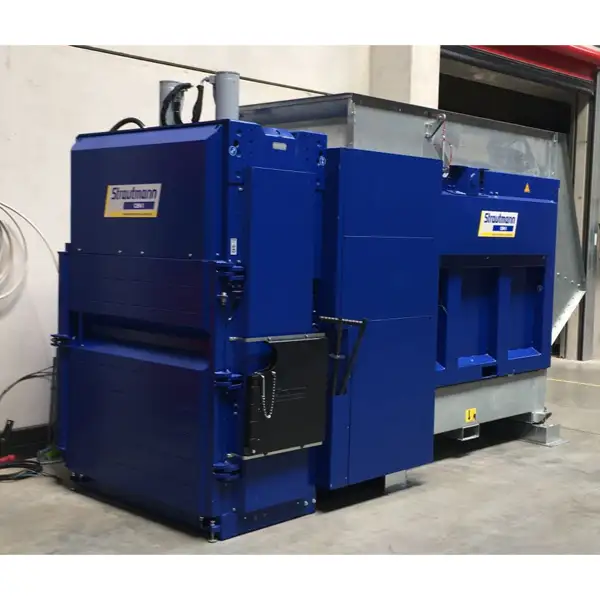

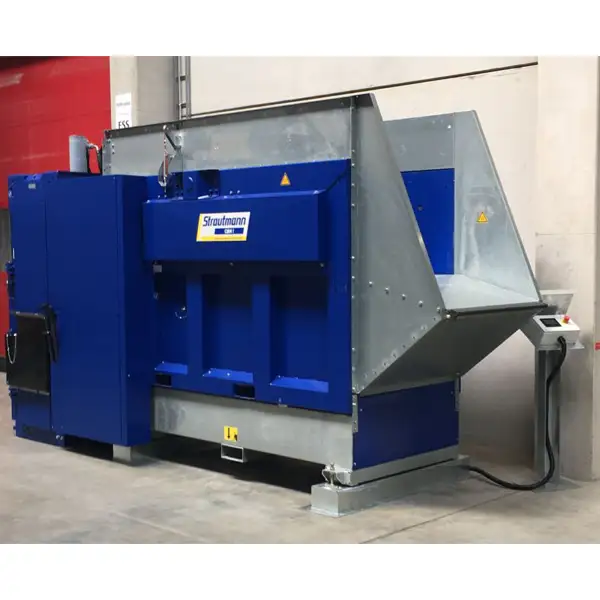

The JumboLoadBaler is a unique machine that combines features from the GigaBaler, BaleTainer, and AutoLoadBaler. It has a large hopper that allows for the easy loading of various materials, making it more efficient than traditional skip-loading methods. This not only saves time but also reduces costs.

How it works

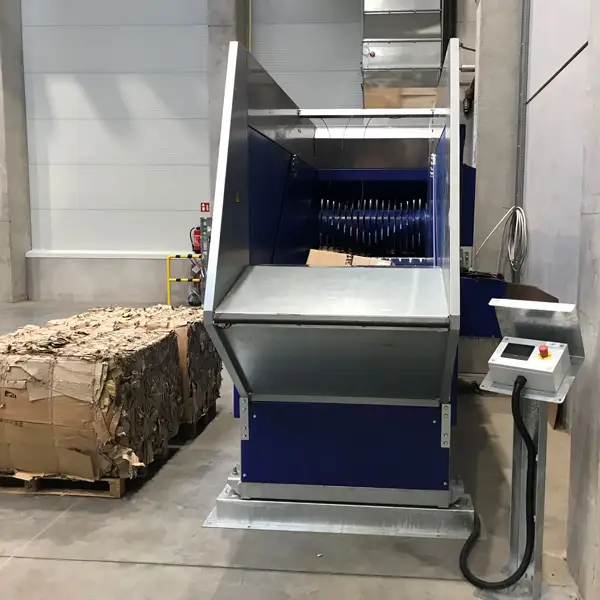

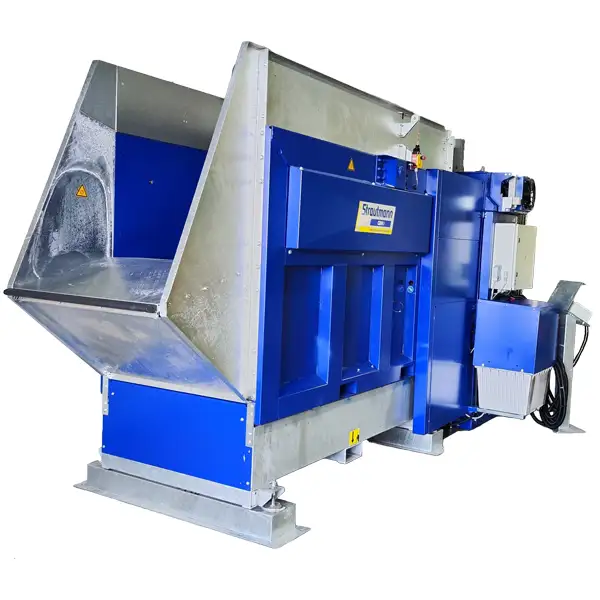

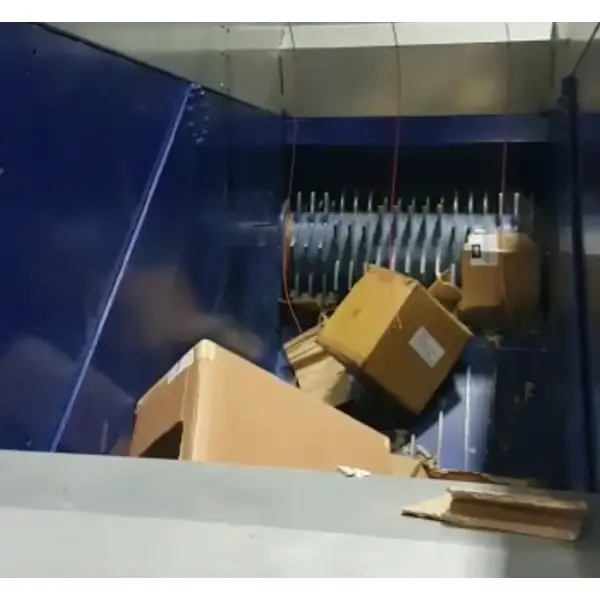

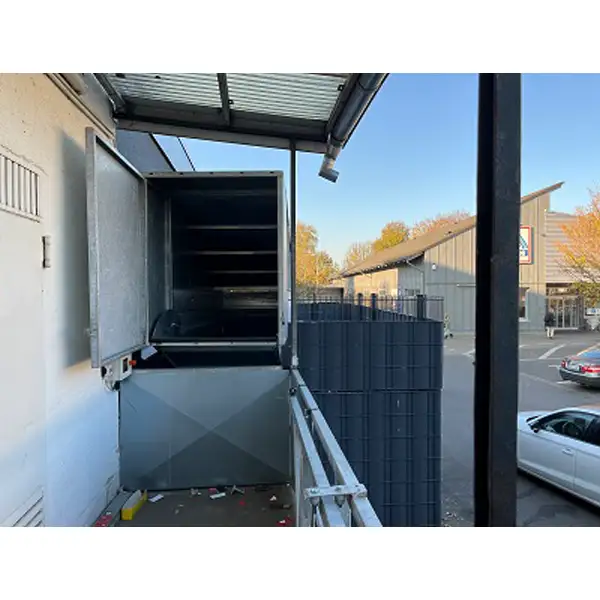

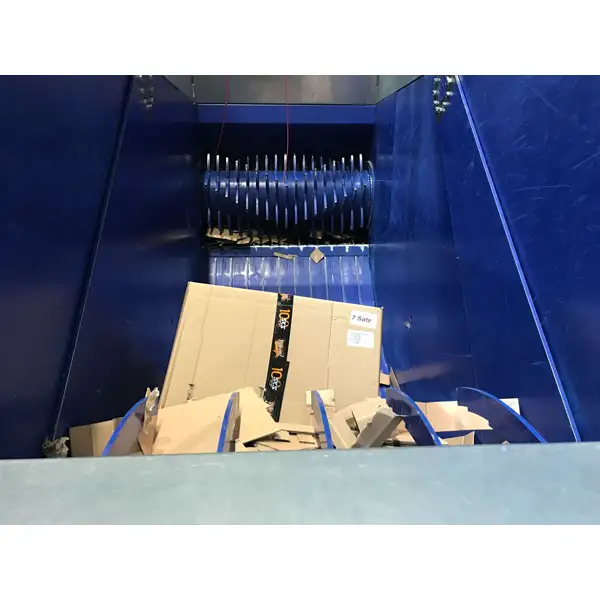

The JumboLoadBaler has a small footprint but boasts a 7m3 hopper that can be filled from the top. The hopper constantly empties itself from the bottom, ensuring that the machine is always ready for the next load. The swing plate forces materials into the destruction rotor, which then fills the bale chamber with shredded pieces. The chamber cycles up and down automatically until the bale is full. The entire process is simple yet highly effective.

The JumboLoadBaler is an excellent choice for companies with limited space for a large baler. It eliminates the need for staff to spend hours cramming large cardboard boxes into a vertical baler. It is also easy, safe, and quick to use, freeing up staff for more profitable work and removing them from repetitive and potentially injurious manual labor.

In Summary

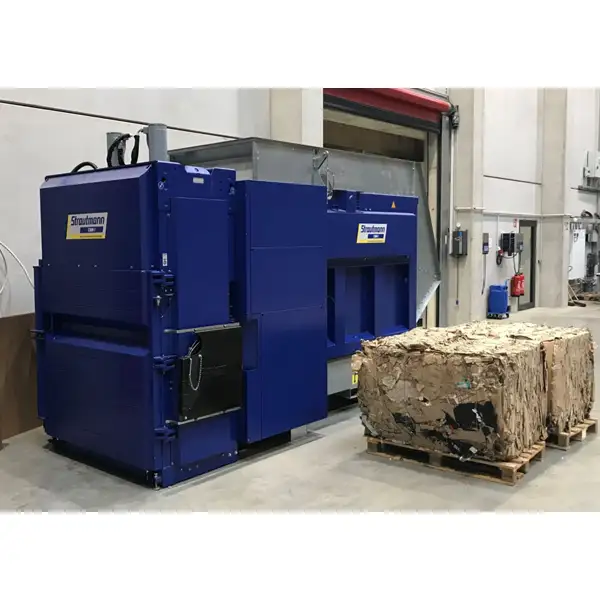

The JumboLoadBaler is a versatile and efficient machine that offers a large feed opening, high proceeds for Mill Sized bales, and is an excellent investment for companies looking to improve their waste management processes.

  • Easy, safe and quick to use
  • Small footprint
  • Frees staff for profitable work
  • Removes staff from repetitive, injurious manual labour
  • Large feed opening
  • High proceeds for Mill Size bales
  JumboLoadBaler JumboLoadBaler
  Dock Feed or Auto Feed Ground Level Hand Feed
Power supply 400V, 50Hz, 32A 400V, 50Hz, 32A
Electrical power 11.4kW 11.4kW
Pressing force 60t 60t
Press stroke 750mm 750mm
Machine weight 5800kg 5950kg
Transport dimensions (L x W x H) Package 1: 2222 x 1250 x 2517mm

Package 2: 1606 x 3285 x 2146mm

Package 3: 1649 x 690 x 302mm

Package 1: 2222 x 1250 x 2517mm

Package 2: 1606 x 3984 x 2552mm

Package 3: 1649 x 690 x 302mm

Filling opening 1069 mm 1083 mm
Cycle time/Throughput Approx. 2 bales per hour Approx. 2 bales per hour

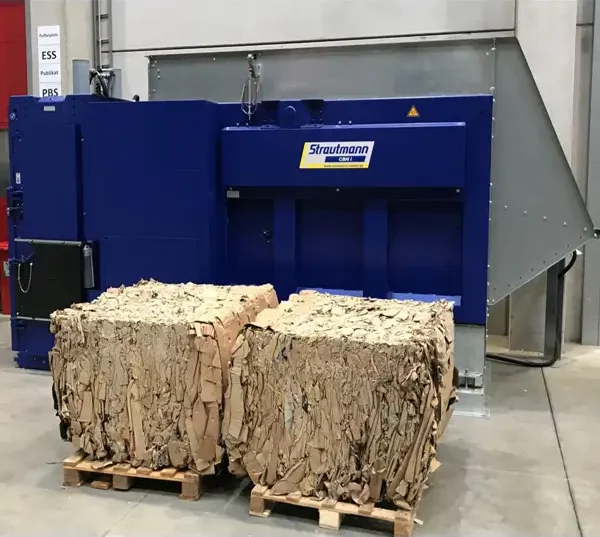

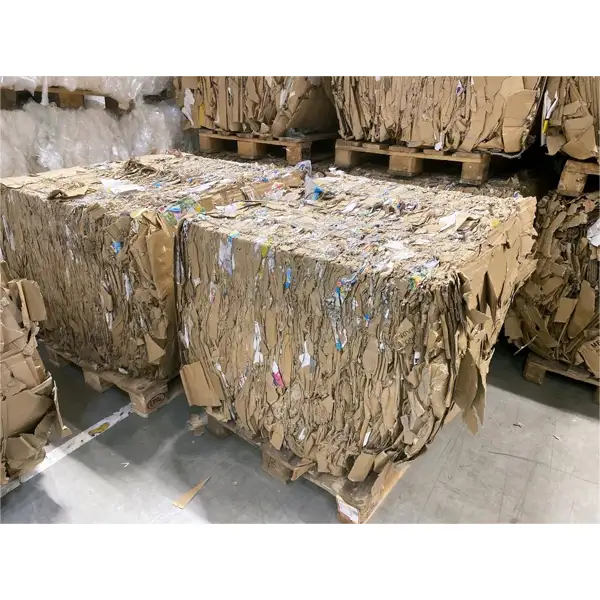

Bale weight 400kg 400kg
Bale size (L x W x H) 1200 x 800 x 1000mm 1200 x 800 x 1000mm
Bale tying Strapping with four wires Strapping with four wires
