The time machine of waste disposal.

Fed up with the high labour cost of loading a cardboard baler by hand?

Use the high capacity AutoLoadBaler carts around your operation to collect all waste cardboard. When a cart is full, load it into the machine and take an empty cart back to work.

3-5 minutes of manual labour is eliminated, as the machine automatically does the job for you. This frees your staff to be where you want them, working profitably!

Key Features

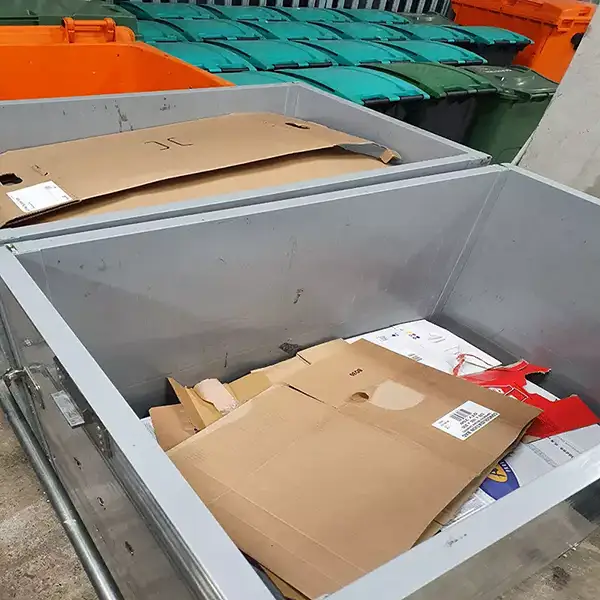

  • Easy to use, high capacity collection carts
  • Fast, efficient cart loading/exchange
  • Automatic filling and baling process

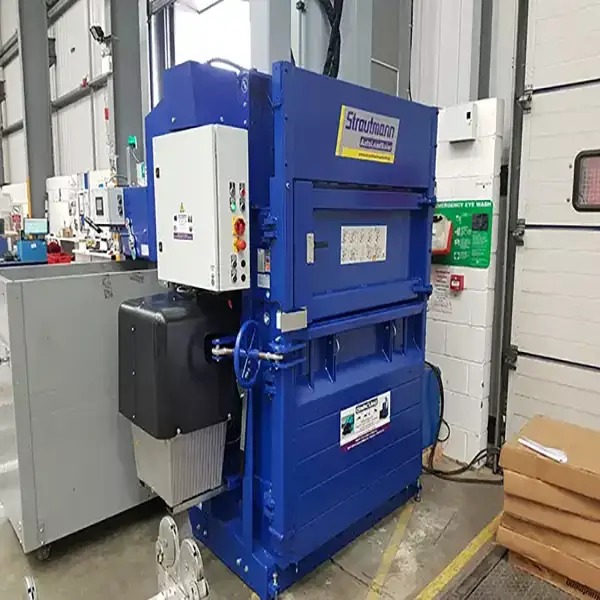

  • Compact design – less than 5 m² footprint

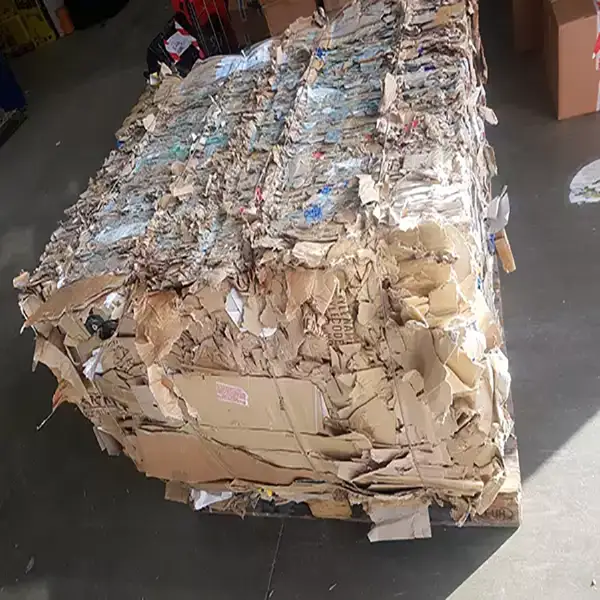

  • Mill Size 400-450kg saleable bales
  • Complete operator safety
  • Removes the need for repetitive, unpleasant manual labour
  • Removes dependence on potentially hard-to-find staff

Bale Weights
400kg - 450kg
Material To Recycle
Cardboard / Paper
Weekly Volume

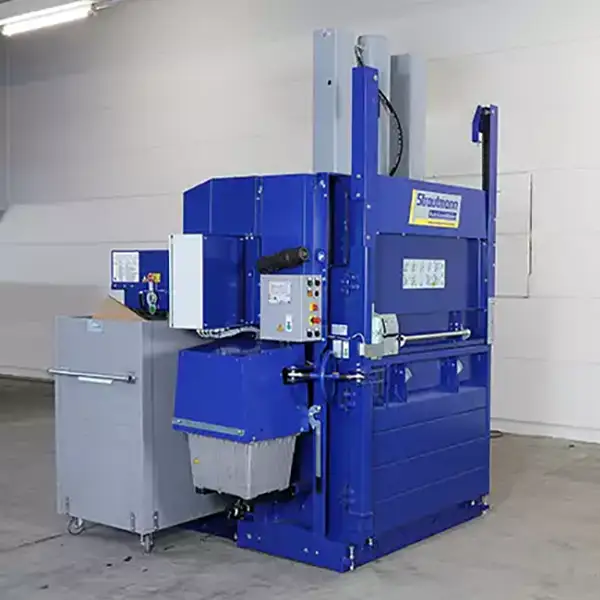

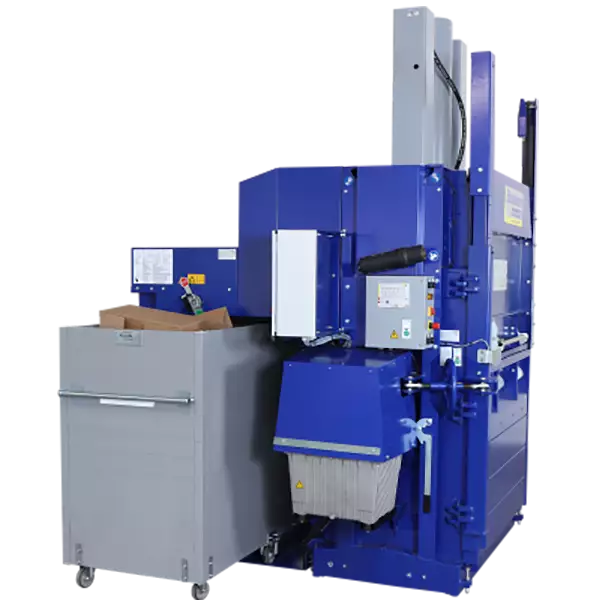

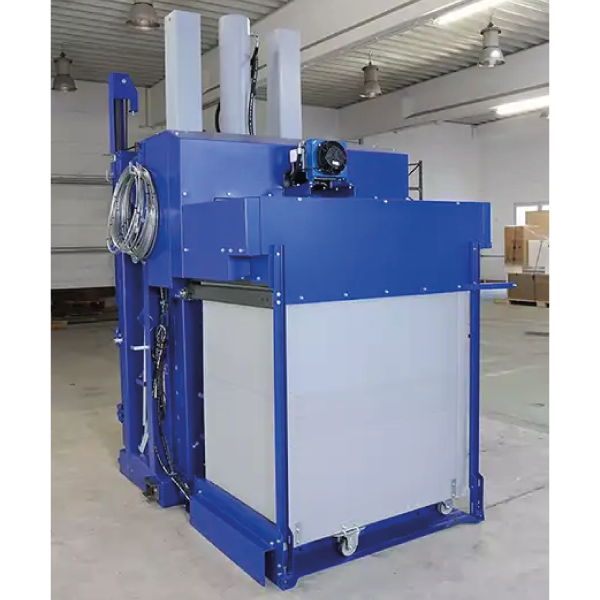

The AutoLoadBaler is a unique and patented machine, designed to remove the time and cost of loading cardboard balers by hand.

It takes just 20 seconds to load a full cart of card into the AutoLoadBaler, leaving your staff free to just take an empty cart back to work, saving typically 3-5 minutes of hand loading.

Most users save 2000-4000 hours each year, which adds up to many hundreds of thousands of pounds over the machine’s 20-25 year lifespan.

More time for your core business, less time for compacting cardboard.

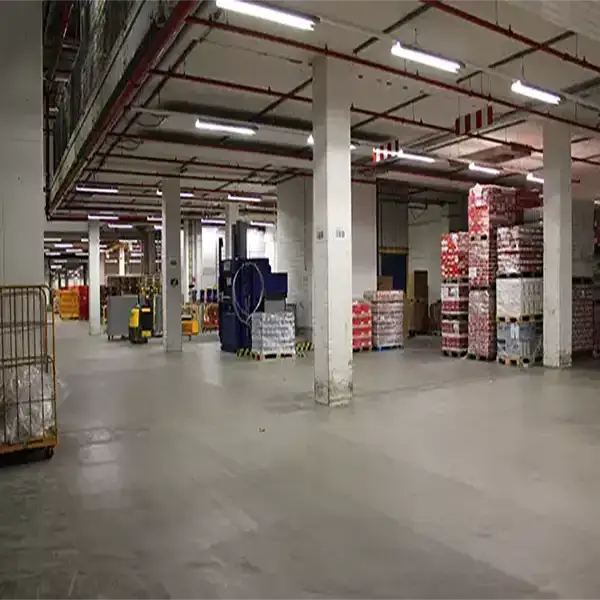

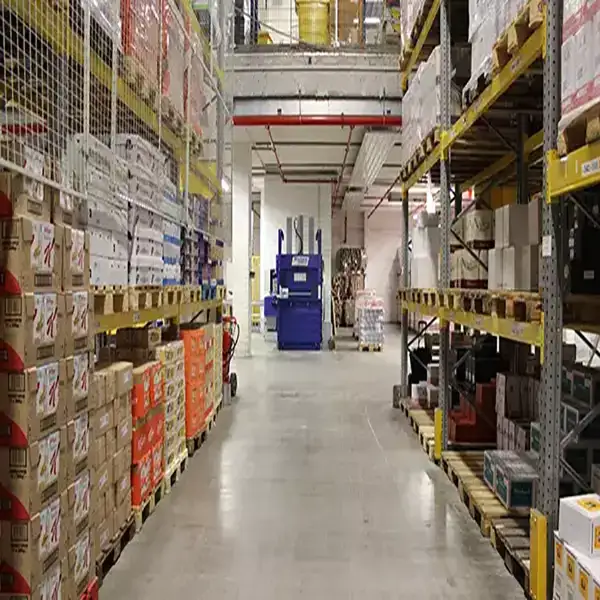

Designed for use by retailers, manufacturers, warehouses and distribution centres, the AutoLoadBaler can automatically make a 400-450kg bale every 25 minutes, compared to around 2.5-3 hours in a traditional hand-loaded machine.

We think of the AutoLoadBaler as your never-tiring, 24/7 working, fast and efficient, warehouse cardboard baling operative. They won’t ring in sick, take holidays, claim overtime, leave for higher pay, or ever even say one word of complaint! They will just keep on working, saving and earning you money, week in-week out. They will do a job no one enjoys, and they will do it well.

How does it work?

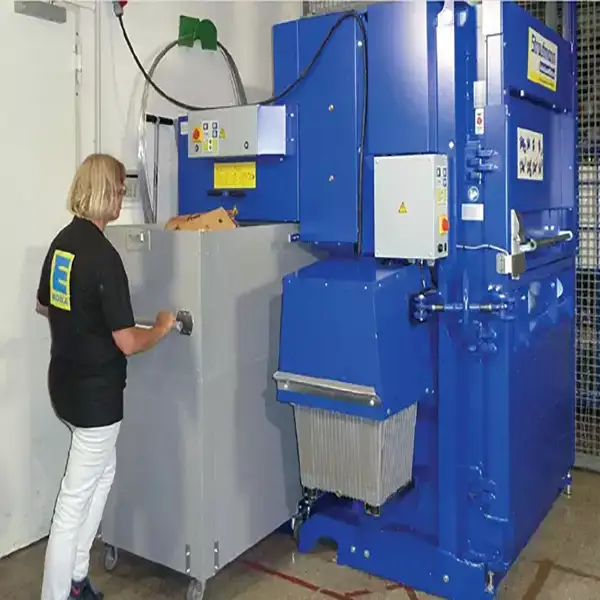

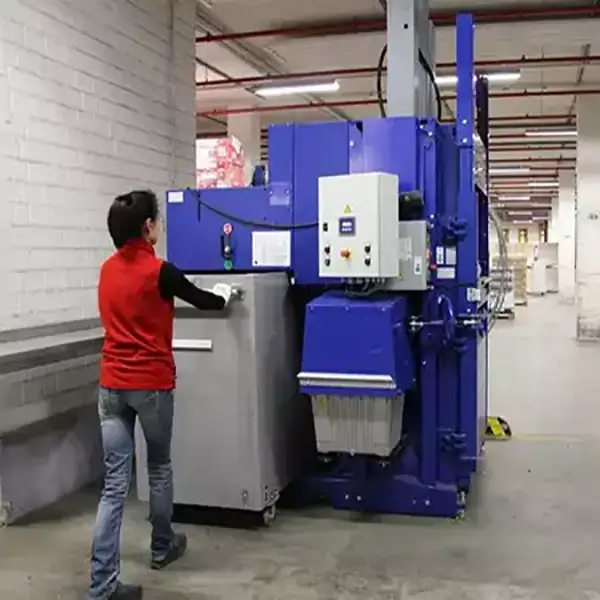

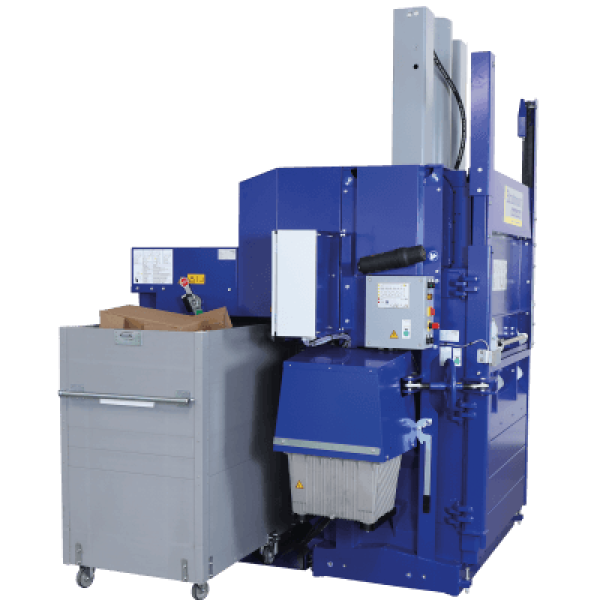

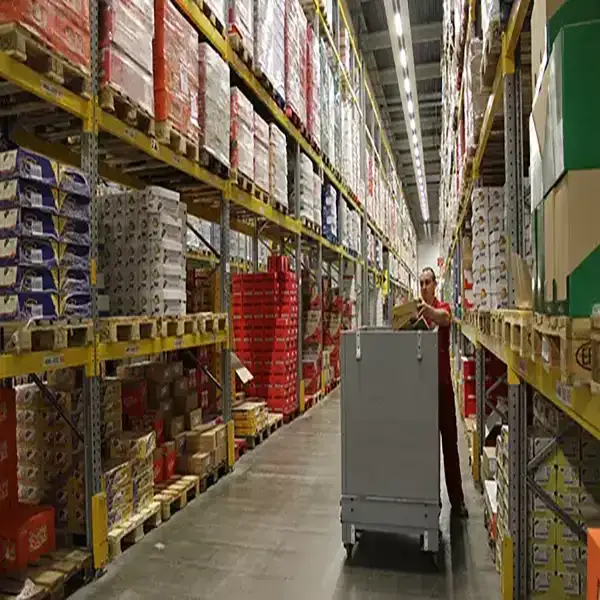

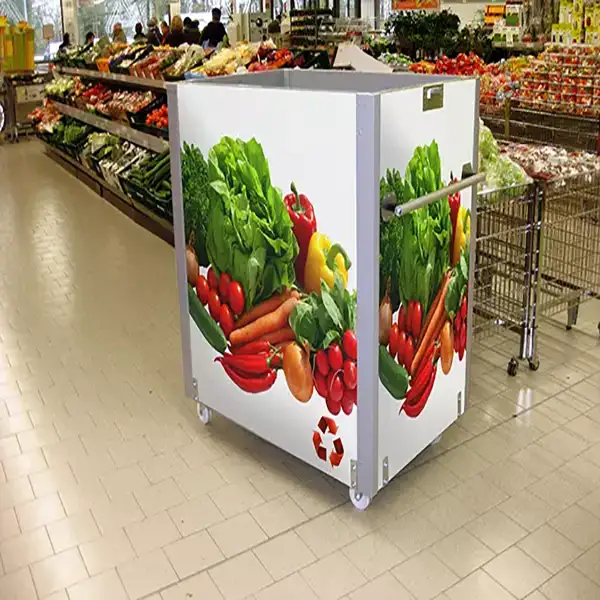

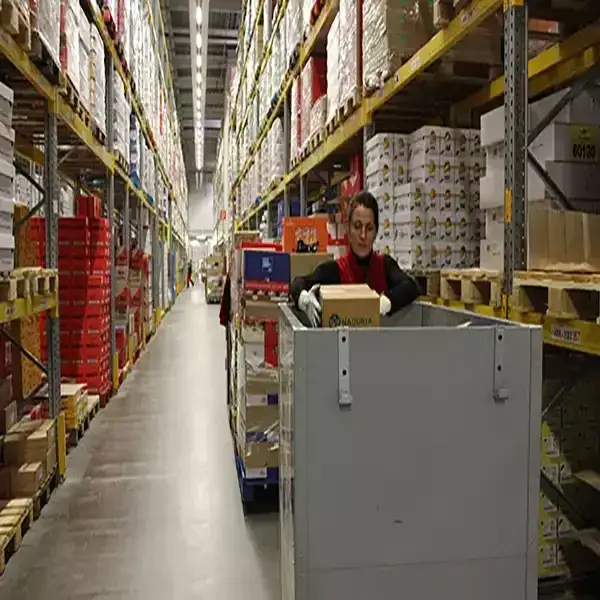

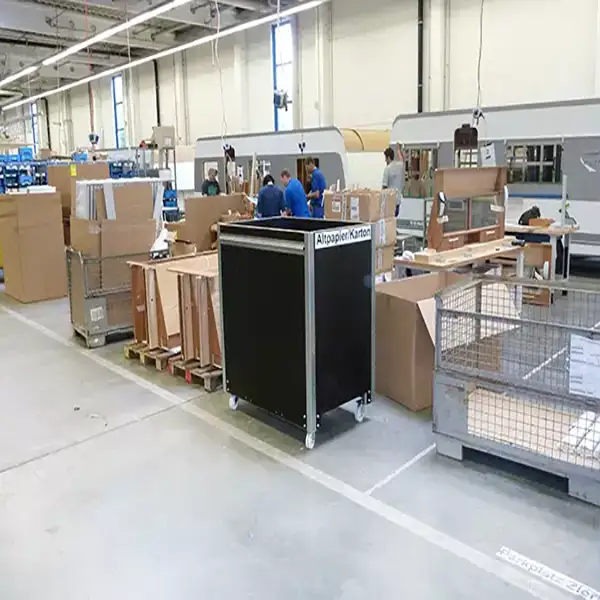

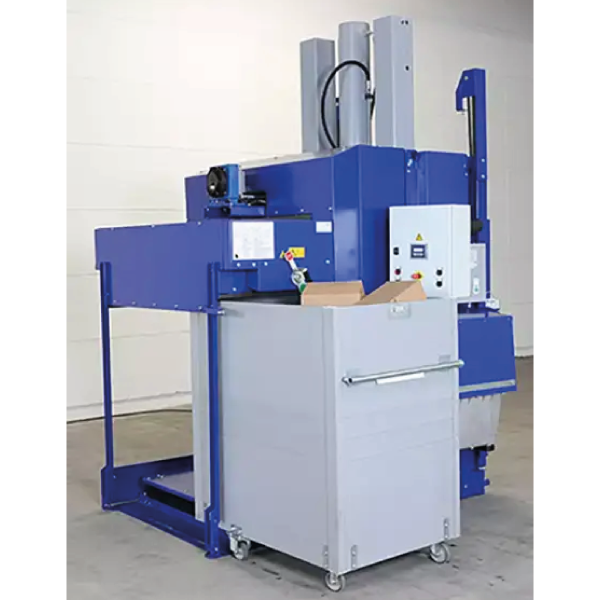

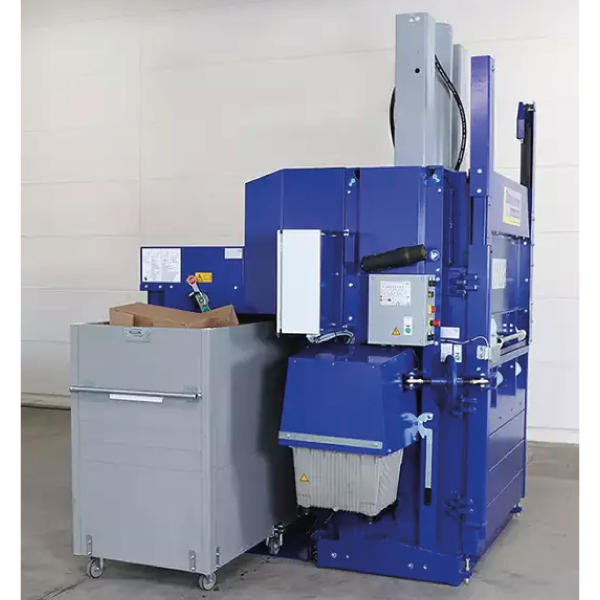

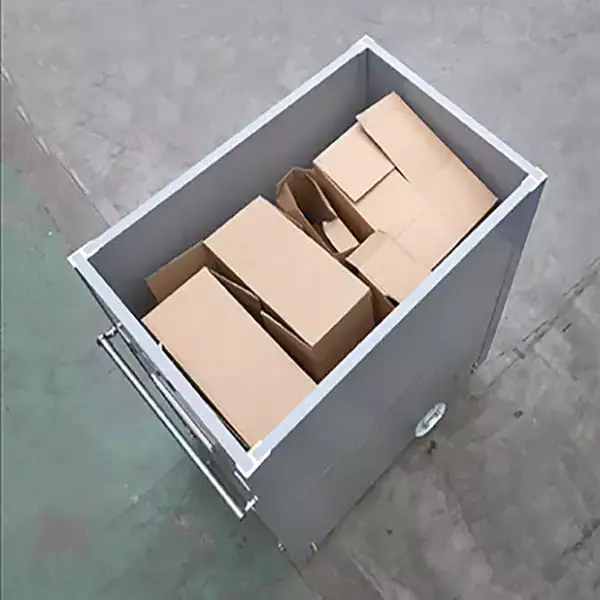

The AutoLoadBaler is used with its own “special design” carts which are positioned wherever cardboard is generated in your business. There is no need to flatten cardboard boxes before placing them in the carts. When full, simply push the cart into the baler’s loading position, press start, take an empty cart and go back to work, leaving the machine to automatically empty the cart for you.

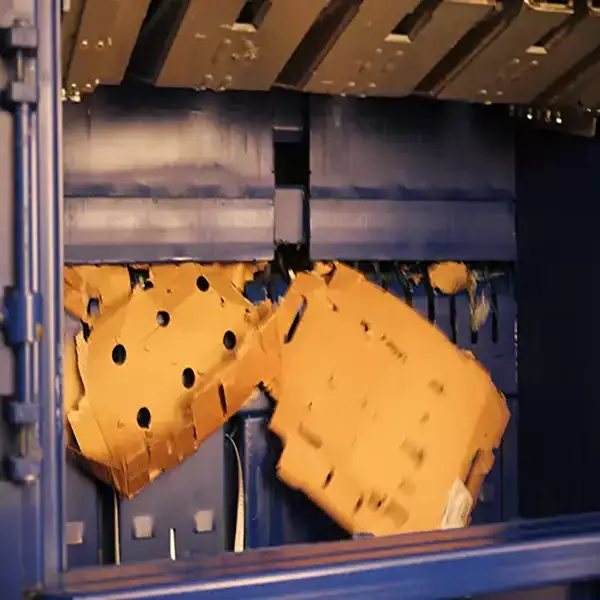

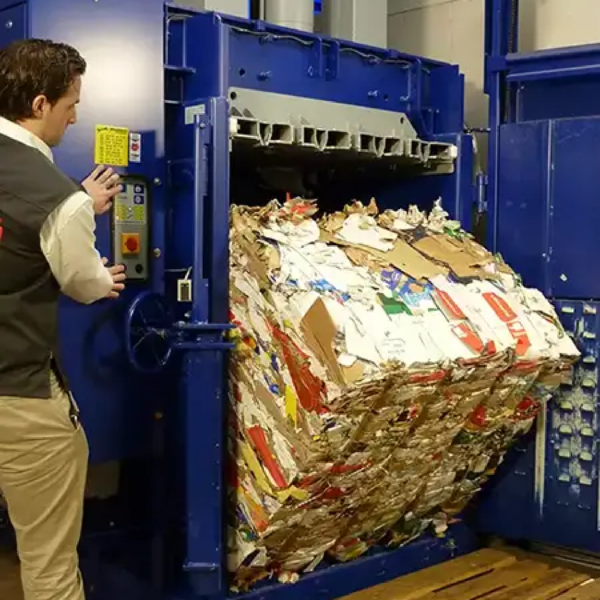

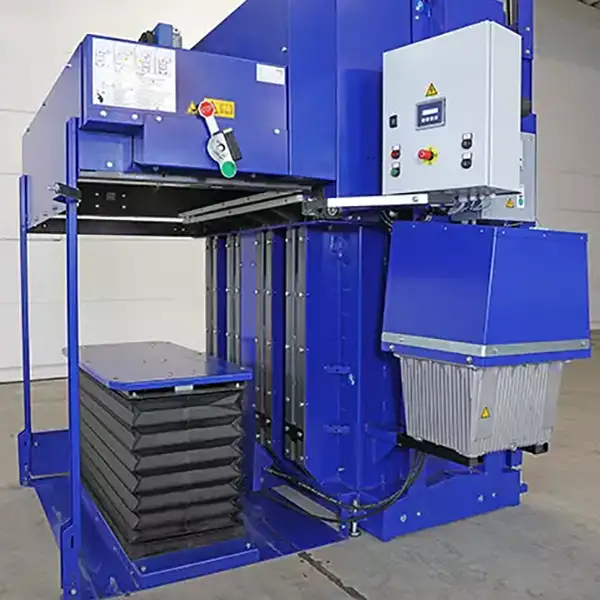

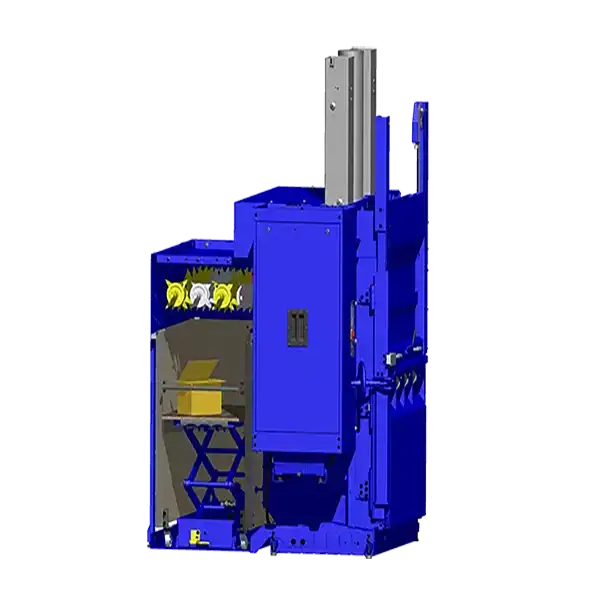

The base of the cart is automatically raised forcing the cardboard into a set of rotors that feed it into the bale chamber for compaction. After repeated fills (typically around 35 carts) the bale full light comes on telling the operator to tie off and eject the bale in the usual “Strautmann” way.

In Summary

  • Designed 50,000 operating hour lifespan
  • Easy, safe and quick to use
  • Small footprint
  • Frees staff for for profitable work
  • Removes staff from repetitive, injurious manual labour
  • Optimises internal work logistics
  • Large feed opening and cart capacity
  • High proceeds for Mill Size bales
  • Typical savings of up to 4000 hours per year or more!
  • Cart entry from left or right

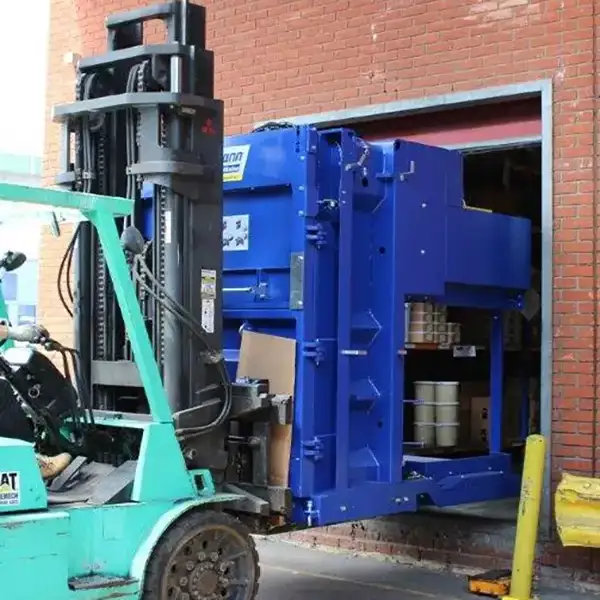

  • Low headroom model
  • Soundproofed model
  • Strap-tied or wire-tied (can use Cut and Loop wire or QuickLink)
Power supply 400V, 50Hz, 16A
Electrical power 4.37kW
Pressing force 53t
Press stroke 690 – 890mm subject to model
Machine weight 3100kg
Transport dimensions (L x W x H) 2047 x 2126 x 2258mm
Machine dimensions (L x W x H) 2106 x 2147 x (2850 – 3050 subject to exact model)
Filling opening 1192 x 575mm
Cycle time/Throughput Approx. 25 minutes per bale
Bale weight 420 – 480kg
Bale size (L x W x H) 1200 x 800 x 1100mm
Bale tying Strapping with four twines/wires
Cart Dimensions (L x W x H) 1158 x 758 (opening for material) x 1330
