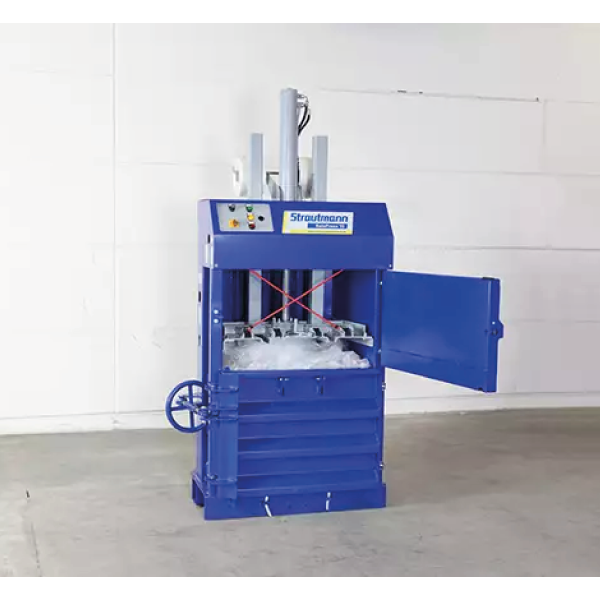

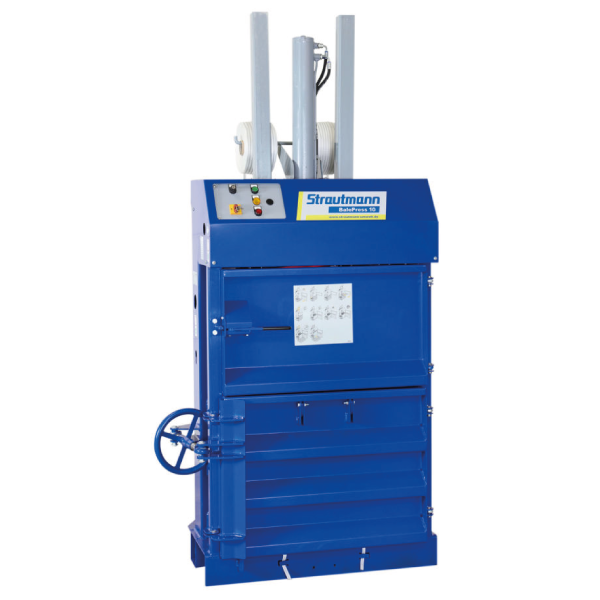

BP10

A small machine with big savings.

Perfect for small spaces with big waste problems, Strautmann’s BP10 brings order from chaos!

If your operation creates lots of waste in limited space you will know that filling bins and skips can be a nightmare.

The BP10 is a powerful 10 tonne press machine than sits in just 1200 x 800mm floor space and has all the features of our larger models.

While it is often chosen to bale polythene film next to a mill size cardboard baler, it is able to handle a wide range of materials making bales of up to 120kg.

Key Features

  • Save time
  • Save space
  • Fill fewer skips
  • Recycle your waste for profit
  • Cut carbon footprint
  • Improve site tidiness and efficiency
  • Increase site safety
  • Reduce fire risk

Bale Weights
80kg - 120kg
Weekly Volume
Material To Recycle
Cardboard / Paper, Plastic / Film

The BP10 is the largest of our small machines for producers of between 50-60 tonnes of material per annum, and is perfect for those looking to remove paid collection services. This machine is mobile on a pump truck and ideal for use where space is limited.

They are easily filled through the  large feed opening and with 10 tonne pressure they crush cardboard, polythene film, bagged waste and more into compact bales weighing 80-120kg.

The BP10 features a number of labour-efficient, patented systems that guarantee a long working life and lowest lifetime costs.

In Summary

  • Proven German manufacturer
  • Heavy duty design, proven long life
  • Up to 90% volume reduction
  • Frees up time
  • Bales up to 120kg
  • Low power consumption
  • Large infeed aperture
  • Auto cycle down and return
  • Fast cycle times
  • Bale full indicator for uniform bales
  • Push button controls with diagnostics
  • Safe bale door latch system & interlocks
  • Easy and safe twine threading, tie off bales in minutes
  • Two handed control
  • Indoor or outdoor installation
Power supply 400V, 50Hz, 16A
Electrical power 2.2kW
Pressing force 10t
Press stroke 700mm
Machine weight 500kg
Machine dimensions (L x W x H) 1200 x 800 x 2354mm
Transport dimensions (L x W x H) 1200 x 800 x 2410mm (2001mm lowered)
Filling opening 800 x 460mm
Cycle time 18 seconds
Bale weight 80-120kg
Bale size (L x W x H) 800 x 700 x 600mm
Bale tying Strapping with two twines



Looking to Save Money

Why not choose a remanufactured unit?

See our full range of refurbished units

Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
