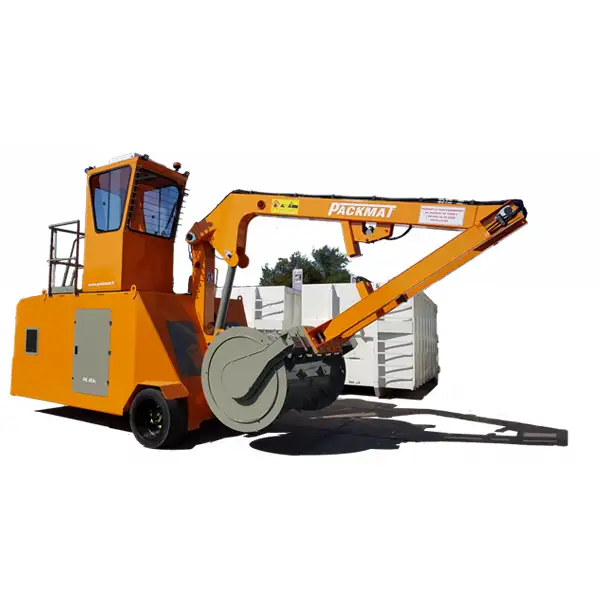

PK404

No machine does what Packmat does - Compact Skip Waste.

Key Features

  • Integrated compactor with container (14-24m3)
  • Maintenance free press head
  • Oversized infeed aperture
  • Optional bin lifters
  • No permanent fixings
  • Liquid sealed version available

Move containers weighing up to 10 tonne with a roller weight of 2300kg, designed to avoid damage to the container.

The roller is lowered and held safely on a support while driving, which also means it can be stored securely in a garage.

Safety is paramount with Packmat machines, and the driver’s cabin of the PK404 is accessed via a set of sloping sets with two handrails at the rear of the machine for this reason. The sloping steps are safer than a vertical ladder, with the rear of the machine always being accessible.

Inside the cabin, the driver’s seat is positioned sideways which enables good visibility in all directions, especially inside the container being compacted.

Quick access to all engine check points, optimised hydraulics and a remote engine oil drain plug ensure easy access to the engine for maintenance and checks, and gives greater reliability.

The PK404 has 3 wheels, which means the machine has a very small turning circle (1.25m inside), so can operate in even the smallest sites.

By compacting the volume of the waste in your skip by up to 80%, the number of containers filled is significantly reduced bringing unparalleled cost savings.

In Summary

  • Can be used with containers up to 3m high
  • Max speed, level ground + no load = 6km/h
  • Max speed, 1/10 (10%) slope + 10t load = 3km/h
  • Hook lifting capacity = 5 tonne
  • Towing capacity, 1/10 (10%) slope = 10 tonne
  • Stable and safe driving
  • Easy and safe access to the driver’s cabin
  • Ergonomic and comfortable driver’s cabin
  • Easy access to fuel and oil tanks
  • Easy access to the engine and hydraulics
  • Powerful yet economic engine
  • Easy to manoeuvre
  • Front and rear limit switch control for roller travel
  • Heating cabin
  • Re-chargeable battery driven option
Gross weight 20200kg
Machine weight 10200kg
Length roller lowered 7434mm
Length roller lifted 5000mm
Overall width 2400mm
Wheel base 2400mm
Height roller lowered 4010mm
Height roller lifted 7000mm
Height under lifted roller 3430mm
Ground clearance 310mm
Ground clearance lowered 286mm
External steering radius without container 3510mm
Internal steering radius without container 0mm
Roller centre of gravity lowered / trailing axle 495mm
Overhang / cantilevered steering wheels 1100mm
Overhang / cantilevered driving wheels 680mm
Maximum inclination roller lifted 3 deg
Roller speed 20 tr/mm
