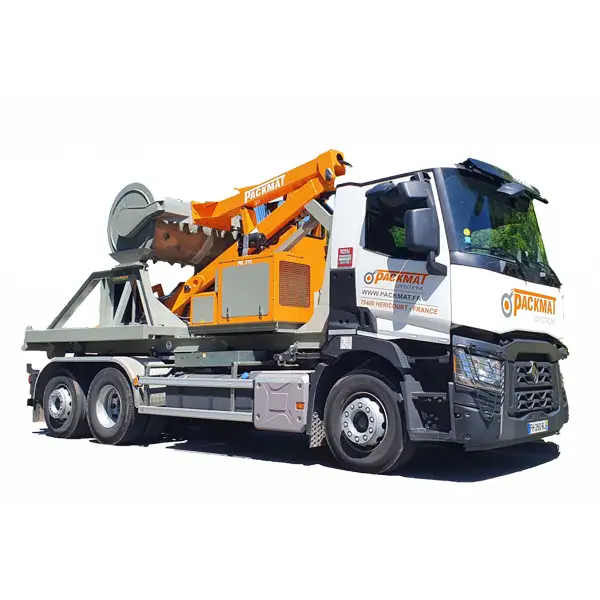

Roller for mobile use on hooklift chassis (options for rear hook attachment).
By compacting the volume of the waste in your skip by up to 80%, the number of containers filled is significantly reduced bringing unparalleled cost savings.
Roller for mobile use on hooklift chassis (options for rear hook attachment).
By compacting the volume of the waste in your skip by up to 80%, the number of containers filled is significantly reduced bringing unparalleled cost savings.
Weight and dimensions
GVW | 6500kg |
Machine weight | 6500kg |
Max length | 5970mm |
Overall width | 2370mm |
External frame width | 1060mm |
Height without hight truck | 2800mm |
Height under the roller without hight truck | 1820mm |
Rear ground clearance | 260mm |
Front ground clearance | 0mm |
Diameter of rolling rollers | 200mm |
Width of rolling rollers | 200mm |
Hook height | 5/1545mm |
Axle diameter | 50mm |
Centre of gravity
Arm folded from front face | 3116mm |
Arm unfolded from front face | 5600mm |
Side stop from front face | 301mm |
Side stop from low side frame | 118mm |
Max cantilevered from the hooklift roller | 1300mm |
Minus cantilevered from the hooklift roller | 400mm |
Back cantilevered machine | 400mm |
Angle of devers maxi unfolded arm | 5 deg |
Slope maxi unfolded arm | 10 deg |
Truck speed maxi with unfolded arm | 0 km/h |
Roller speed minimum | 20 tr/mm |
Roller speed maximum | 25 tr/mm |
