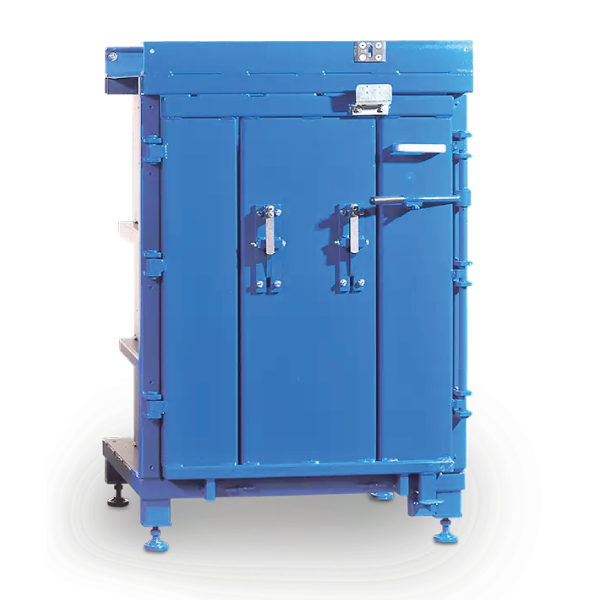

MK700 twin

A space saving solution for multi material problems.

Ideal for busy operations that generate multiple waste streams that need to be dealt with quickly and efficiently “at source”, the MK700 can be supplied with 2-6 chambers. It makes dense, heavy bales of cardboard, paper, plastics, films and more that typically weigh 40-60kg and are tied off with low-cost, easy to store bale twine or strapping, that is quick, clean, and safe to use in all environments.

Improve your operational efficiency, recycle your waste, cut costs and free up your time from waste handling to profitable work.

Designed for a 50,000 operating hour working life, this one baler will enable you to do the right thing first time with medium to high volumes of multiple materials, solving your waste handling and recycling problems.

Key Features

  • Revolutionise your recycling
  • Do the right thing first time
  • Handles multiple waste materials
  • Large, top loading feed chambers
  • Small footprint – do a lot in a little!
  • Ideal for baling “at source”
  • Low operating costs
  • Uses low cost, easy to store, clean bale twine or strap
  • Free your staff for profitable work
  • Sell your bales and turn waste cost into profit

Bale Weights
50kg - 60kg
Material To Recycle
Cardboard / Paper, Plastic / Film
Weekly Volume

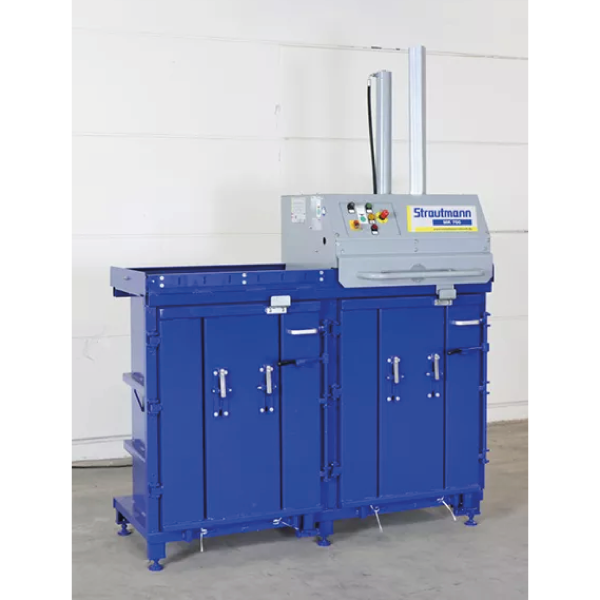

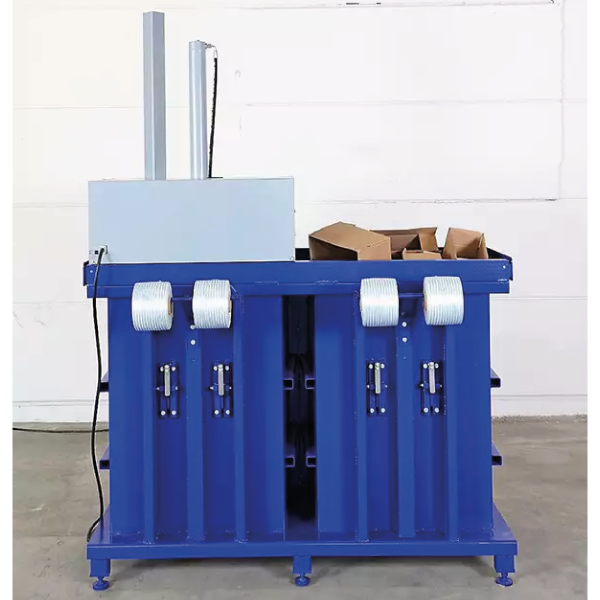

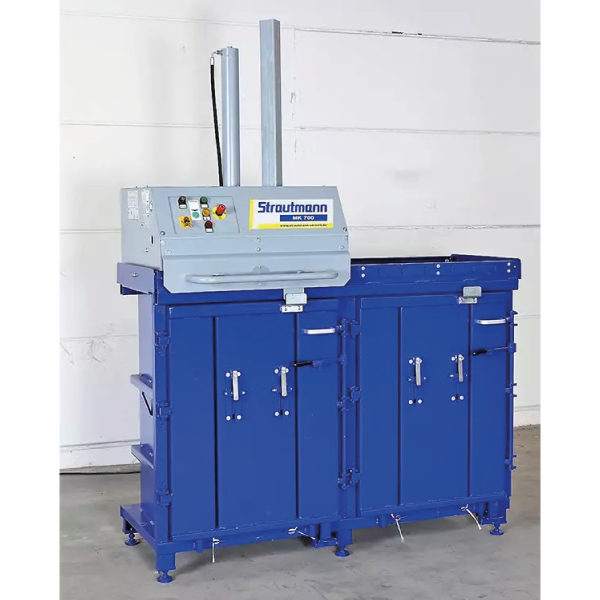

The Strautmann MK700 twin chamber baler is ideal for sites generating two or more recycling streams, and enables producers of low to medium volumes of cardboard, polythene, paper and other compactable waste to cut costs and improve their operational efficiency.

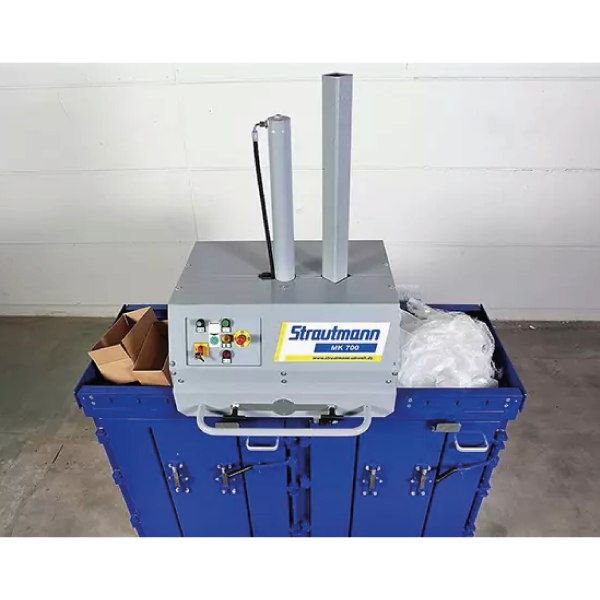

Filling is quick and easy through its top loaded feed chambers.

With 4t or 6t force it produces compact bales weighing 40-60kg depending on material, that are tied off with low-cost, easy to store, easy to use, safe and clean bale twine or strapping.

With its heavy duty build and high operator comfort and safety, the MK700 will turn your waste costs into profit!

In Summary

  • Proven German manufacturer
  • Heavy duty design, proven long life
  • Available with 2-6 chambers for multiple materials
  • Material selection switch
  • Bales up to 60kg
  • Low power consumption 1.5 or 2.2kw motor
  • Large infeed aperture
  • Fast cycle time of 32 seconds
  • Auto cycle down and return
  • Bale full indicator for uniform bales
  • Supplied with robust bale removal trolley

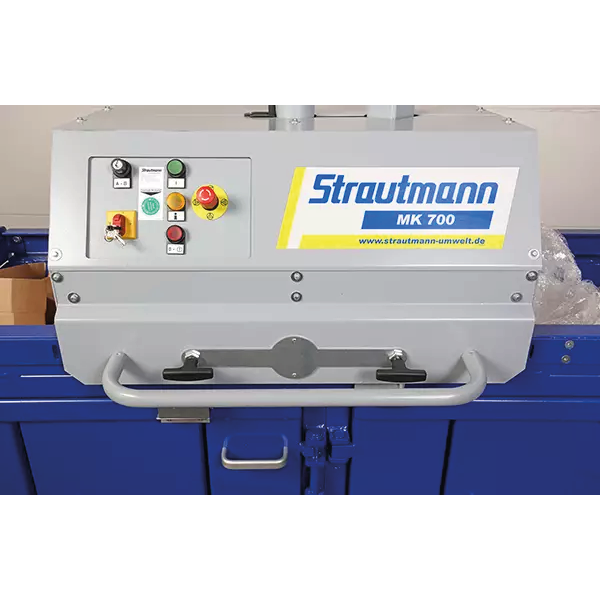

  • PLC control with error diagnostics
  • Safe bale door latch system & interlocks
  • Easy and safe twine threading, tie off bales in minutes
  • In or outdoor installation
  • Space saving design

Available in both 4t and 6t press force.

  • The 4t press force uses a single phase 1.5kW motor
  • The 6t press force uses a three phase 2.2kW motor
MK700 40kN MK700 60kN
Power supply 230V, 50Hz, 16A 400V, 50Hz, 16A
Electrical power 1.5kW 2.2kW
Pressing force 4t 6t
Press stroke 700mm 700mm
Machine weight 780kg 780kg
Transport dimensions (L x W x H) 1720 x 990 x 2290mm (2165mm lowered) 1720 x 990 x 2290mm (2165mm lowered)
Filling opening 710 x 490mm 710 x 490mm
Cycle time 32 seconds 32 seconds
Bale weight 40-60kg 50-60kg
Bale size (L x W x H) 700 x 700 x 500mm 700 x 700 x 500mm
Bale tying Strapping with two twines per chamber Strapping with two twines per chamber



Looking to Save Money

Why not choose a remanufactured unit?

See our full range of refurbished units

Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
