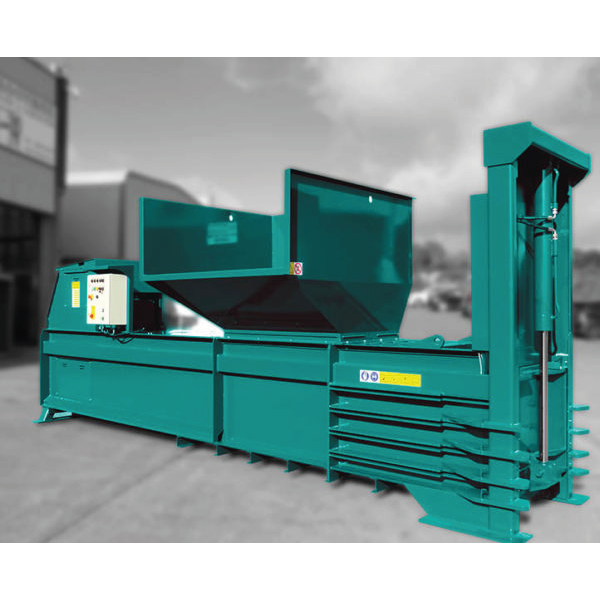

CB40 Semi Auto Baler

The CB40 is a large feed aperture, semi automatic baling press with a full stroke/full eject ram that makes it highly effective for the baling of materials including paper, cardboard, cores, film, PET, cans, TetraPak®, hard and soft plastics, and more.

Key Features

  • Easy, safe and fast to load
  • Readily accepts large size/volume materials
  • 750 x 750 x 1200mm bale size
  • Makes 24 tonne payloads
  • 38 tonne pressure
  • Maximum revenue for bales
  • High cost savings in logistics and staff labour
Bale Weights
300kg - 400kg
Material To Recycle
Cardboard / Paper, PET Bottles / Drinks Cans, Plastic / Film
Weekly Volume

As with all Durapac balers, the CB40 is a heavy duty, robust yet small size and versatile baler.

Weighing 5.5 tonne in standard fit out, it is quality engineered and designed for a 50,000 hour working life, even in the most demanding industrial baling operations.

It is fitted with the same heavy duty shear blades and cutting knives as all of our larger machines and full bale eject as standard – making it ideal for handling a diverse range of materials with installations in operation handling cardboard, polythene film, hard and soft plastics, making bales of up to 400kg.

Due to its high press force, it is particularly effective at baling PET bottles, aluminium and steel cans, foam and shredded paper.

Bale tying is quick, easy and safe and with the slotted end door, there is no setting up of wires. The Durapac CB40 model baler is suitable for fitting out with a range of loading options to suit each client’s individual needs.

In Summary

  • Save labour costs with fast, easy loading of bulky materials
  • Save space, time and money and use less baling wire with high density bales
  • Make square edged bales which are easy and safe to stack and store
  • Reduce power consumption and costs with our high efficiency power-pack design and motors
  • Gain maximum rebates and minimum transport costs with mill quality bales
  • Robust, heavy duty design, quality engineered for a long life
  • Proven with over 30 years of manufacture and 100s of installations

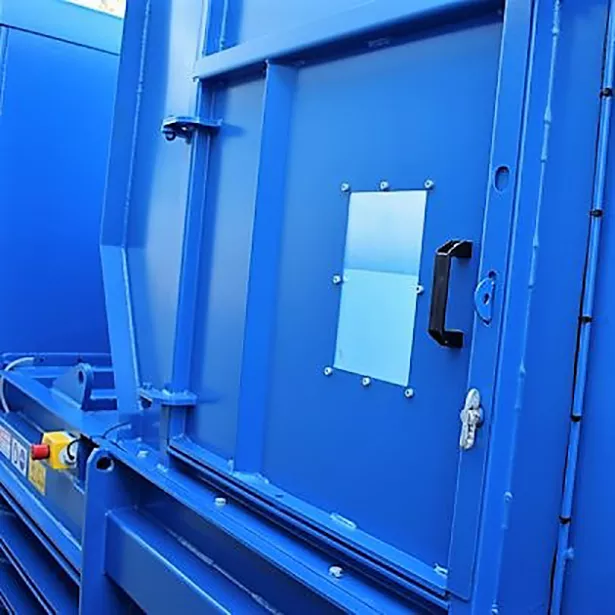

  • Vertical (Portcullis type) hydraulic end door
  • Bales up to 400kg
  • Fast cycle time of 40 seconds
  • Low energy motor
  • High and low pressure baling modes
  • 4 wire horizontal tying
  • Hardox floor and press plate base

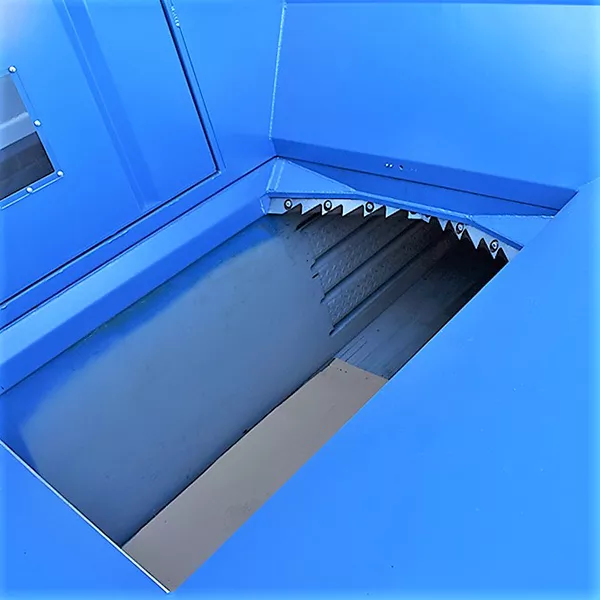

  • “V” shaped serrated, chamfered shear blades

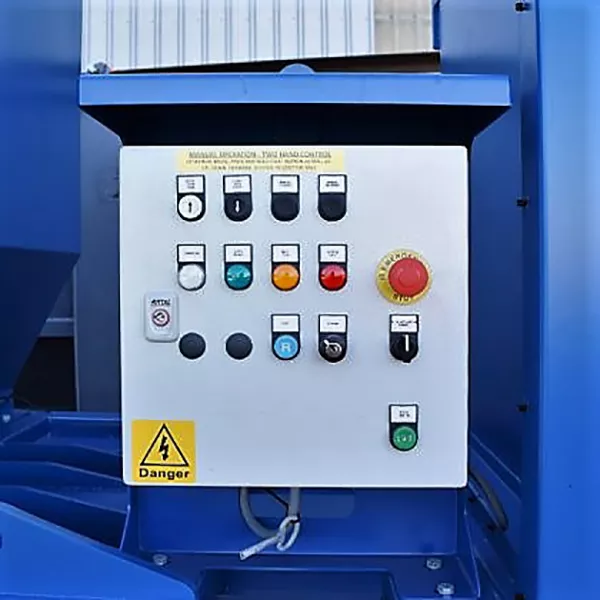

  • PLC control and error diagnostics
  • Enclosed power pack and control panel – weather and vandal proof

Optional fitouts:

  • Bin tippers for 120-1100L wheeled carts
  • Fast cycle options from 54-36 seconds
  • Range of motor options
  • 5 wire horizontal ties
  • Text & email GSM notification system
  • Custom hopper design and fit out
Bale size (H x W x L) 750 x 750 x 1200mm
Bale weight 400kg
Feed opening 1250 x 710mm
Power supply 5.5kW, 32A
Motor power 3 PH + E + N, 400V, 50Hz
Noise level 8 d BA
Wire tying 4 tie slots (horizontal)
Baling wire holder STD
Bale counter and hours run feature STD
Compaction pressure 38t
Standard cycle 60 seconds
Fast cycle 40 seconds
Overall length 5790mm
Overall width 1250mm (excluding hopper)
Weight 5500kg


Newsletter Signup

Estimated Weekly Volumes

Based on a 50kg per m3 material density
Visual Size Guide
1100L bin
55kg approx.
8 yard skip
300kg approx.
16 yard skip
600kg approx.
40 yard skip
1500kg approx.
