Home / Briquetting / BrikPress

BrikPress

The leading briquetting press for PET bottles, drinks cans and cartons.

Price From: £POA

Rental From: £POA

Do you currently bale high volumes of PET bottles, drinks cans or cartons? What is your annual spend on baling wire to do so?

The BrikPress offers a range of models that compact up to 45,000 PET bottles, drinks cans and cartons per hour into dense, valuable briquettes for recycling.

Its unique concept fully automates handling, compacting and removal and can be integrated into your production process.

It is the machine of choice at over 100 of Germany’s long established Deposit Return Scheme (DRS) counting centres.

Key features

  • Volume reduction up to 95%
  • High revenues for briquettes
  • Direct input of bottles with residual liquids and caps
  • Automatic concept
  • Big feed opening
  • High operating comfort
  • Optional cleaning package
  • Central lubrication system
  • Cost savings in logistics and personnel
  • Continuous operation
  • Integration into the running production
Material
Drinks Cans / Cartons, PET Bottles

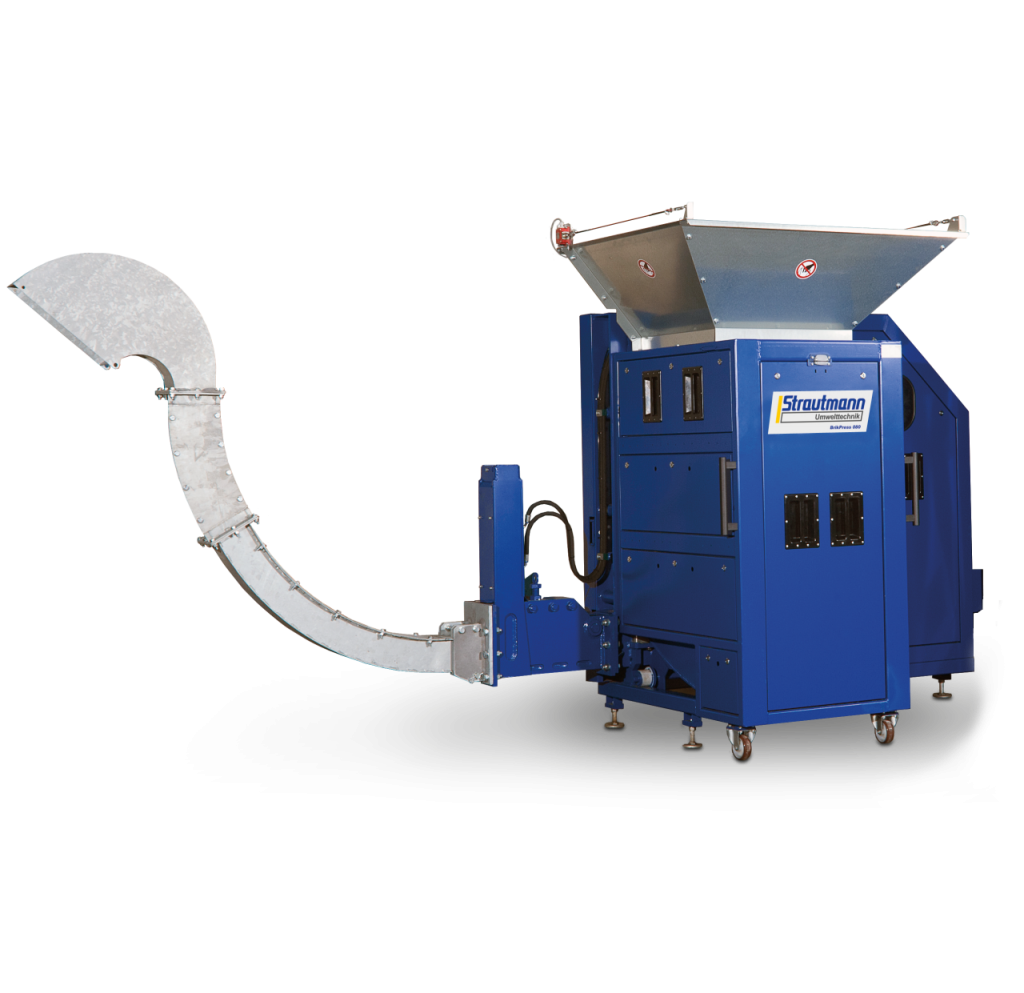

The Strautmann BrikPress allows you to make money from the disposal of your PET bottles, drinks cans and cartons.

The briquettes produced by the compaction process can be sold for profit. Furthermore, these materials can be recycled, and you will save transportation costs. This is supported by the machine’s ability to run 24 hours a day, 7 days a week, with the option of conveyor filling.

The BrikPress can process up to 45,000 bottles per hour, including PET bottles containing residual liquid, and those with caps on.

Unlike bales which have to be tied, briquettes retain their compacted shape, and therefore do not require additional consumable cost to tie them.

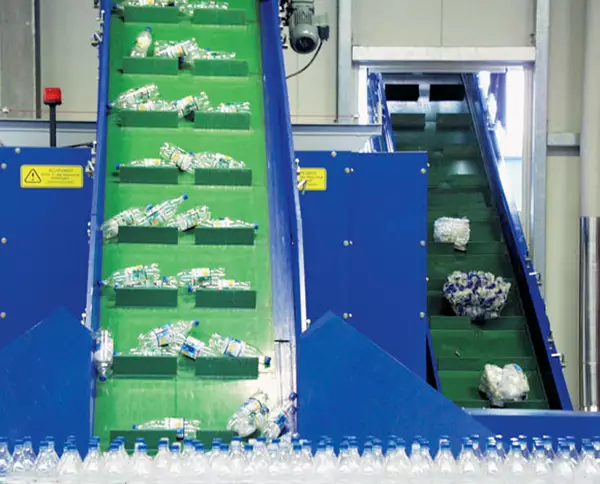

Furthermore, no internal transport is necessary as the conveyor can move briquettes automatically. The option of mounting the chute to a container further expands the possibilities of automation with this machine.

Due to the focus on automation, the machine can easily be integrated into the running process of bottlers, beverage producers and counting centres.

The stable steel construction offers the benefit of a long service life, and reflects the high quality of a Strautmann machine.

In Summary

  • Proven German manufacturer and market leader
  • Hundreds of machines supplied worldwide
  • Heavy duty design, proven long life
  • 95% volume reduction
  • Up to 45,000 PET bottles, drinks cans and cartons per hour
  • Dense briquettes
  • Maximum rebates
  • Low power consumption
  • Large infeed aperture for easy loading
  • Optional transfer system to external skips
  • Error code messages for diagnostics
  • Safe system & interlocks
  • Space saving design
  • Quick ROI due to maximum cost savings/rebate values and minimum labour requirements

Optional fitouts

Feeding variants:

  • Pendulum feeder
  • Screw feeder

Container distribution:

  • One-way – the briquettes are automatically delivered to a container via the briquette chute
  • Double – the briquettes are automatically placed in two containers. Once one is filled, it can be collected
  • Triple (satellite) – automatic briquette distribution spread over three containers, with automatic messaging once the containers are full

Collection tray:

  • A stainless steel tray can be fitted under the machine to collect any residual fluids, providing a cleaner working environment

Cleaning package:

  • The package provides automatic cleaning of the hopper, press cylinder and knife areas
080 EP ES 9.2 240 HP EK 9.2 240 HP ES 9.2 240 NP ES 9.2 240 HP ES 2013
Power supply 400 V, 50 Hz, 32A 400 V, 50 Hz, 32A 400 V, 50 Hz, 32A 400 V, 50 Hz, 32A 400 V, 50 Hz, 32A
Electrical power 10kW 10kW 10kW 10kW 10kW
Press force 25t 38t 38t 38t 38t
Machine weight 1900kg, PU 1300kg 4700kg, PU 1300kg 4700kg, PU 1300kg 4700kg, PU 1300kg 4700kg
Transport dimensions (L x W x H) – Package 1, 2 & 3 1580 x 1195 x 2320mm – 1130 x 995 x 1690mm – 3630 x 930 x 1970mm 1580 x 1195 x 2320mm – 1720 x 1505 x 1700mm – 5465 x 790 x 2660mm 1580 x 1195 x 2320mm – 1720 x 1740 x 2360mm – 5465 x 790 x 2660mm 1580 x 1195 x 2320mm – 1720 x 1505 x 1700mm – 5465 x 790 x 2085mm 1720 x 1740 x 2360mm – 5465 x 790 x 2660mm
Filling opening 700 x 600mm 1300 x 750mm 1300 x 890mm 1300 x 750mm 1300 x 890mm
Capacity per hour 1L PET = 2,000/hr 500ml cans = 8,000/hr 1L PET = 4,400/hr 500ml cans = 17,800/hr 1L PET = 3,200/hr 500ml cans = 13,100/hr
Density of briks
Dimensions of briks 84 x 92mm 240 x 240mm 240 x 240mm 240 x 240mm 240 x 240mm



240 HP EK 30 240 HP ES 30 240 HP ZS 37 240 NP ES 30
Power supply 400 V, 50 Hz, 100 A 400 V, 50 Hz, 100 A 400 V, 50 Hz, 100 A 400 V, 50 Hz, 100 A
Electrical power 30kW 30kW 38.5kW 30kW
Press force 38t 38t 40t 38t
Machine weight 4900kg PU:1600kg 5000kg PU:1600kg 5000kg PU:1600kg 4700kg PU:1600kg
Transport dimensions (L x W x H) – Package 1, 2 & 3 1580 x 1995 x 2320mm – 1720 x 1505 x 1700mm – 5465 x 790 x 2660mm 1580 x 1195 x 2320mm – 1720 x 1740 x 2360mm – 5465 x 790 x 2660mm 1580 x 1195 x 2320mm – 1820 x 3070 x 1380mm – 5465 x 790 x 2660mm 1580 x 1195 x 2320mm – 1720 x 1505 x 1700mm – 5465 x 790 x 2085mm
Filling opening 1300 x 750mm 1300 x 890mm 1700 x 700mm 1300 x 750mm
Capacity per hour 1L PET = 11,305/hr 500ml cans = 29,410/hr 1L PET = 12,700/hr 500ml cans = 33,200/hr 1L PET = 9,500/hr 500ml cans = 24,800/hr
Density of briks
Dimensions of briks 240 x 240mm 240 x 240mm 240 x 240mm 240 x 240mm
