Durapac offer a range of bin lifters to suit bin sizes from 120 to 1100 litres.
Available as standard, high level or customised, Durapac bin lifters are easily adaptable to meet your exact requirements, always with the operators safety in mind.
CBLiftTip Bin Lifters and Tippers
Durapac are market leaders in Bin Lifter design and manufacturing, having developed various specialised bin lifters for companies around the world.
Their range of bin lifters are easily adaptable to meet your exact requirements, always with the operators safety in mind.
Key Features
- Available with both comb & trunnion style lifting & tipping options
- Options of supply with side screens only or with fully enclosed cage & safety interlock
- The range includes stand alone, fixed and mobile bin lifting systems, with tipping height options from 1200mm to 2650mm.

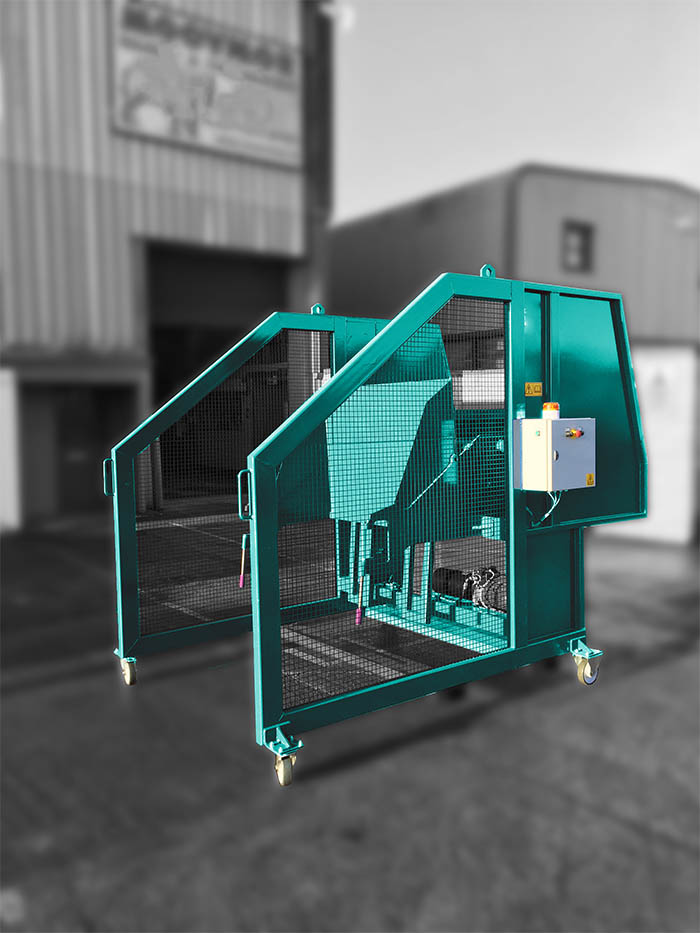

Standard
The standard Bin Lifter tips in over 1450mm off ground, and can be designed to suit a wide range of bins.
There are two typical arrangements for lifting and tipping; the comb style and the trunnion style.
- The comb style mechanism is designed to pick up the bins from the front lip
- The trunnion style lifter picks the bins up by lifting lugs placed on the side of the wheelie bins
Durapac bin lifters can also be designed for dolav bins. Specialised carts with optional fork attachments or bucket style lifters are also available.
Standard Durapac bin lifters are designed to lift a safe working load of 450kg. However, this can be upgraded if required.
Therefore, regardless of what style of cart, container or bin you need to tip, a Durapac Bin Lifter can tip it for you.
High Level
Durapac’s High Level Bin Lifter tips in over 2400mm-2650mm off ground, and can be designed to suit a wide range of bins. Like our standard model, it can be fitted out with either a comb or a trunnion style lifter.
Available with a full surround interlocked safety cage or with side screens for operator safety the Durapac high level bin lifter is your trusted unit for lifting and tipping.
Customised
Durapac are world leaders in Bin Lifter design and development. They have developed various specialised bin lifters to tip in excess of 4m high.
Using gear box driven systems, the required bins are lifted up several levels in one smooth, fast action and tipped into the awaiting reception container.
Traversing options are also available. Here the Bin Lifter will travel sideways across a defined range to tip into large reception vehicles.
Durapac Bin Lifters can be designed to suit your exact requirements.
