Model L roro portable compactor

The largest infeed model in our range.

The Ludden & Mennekes Model L has a fast cycle time, large infeed aperture and can be loaded in a variety of ways. This machine is suitable for high material volumes such as residual waste, moist waste, commercial waste, organic waste and oversized waste.

Key Features

  • Horizontal compaction system
  • Massive loading aperture
  • Fast, efficient and safe waste handling
  • Various loading hopper designs for ground/dock feeding by hand, bin lift, tip skip, etc.
  • 55 second cycle time
  • High 34 tonne compaction force
  • Typically reduces transport by up to 80%
  • Cut your carbon footprint
Compactor Type
Portable
Waste Material
Cardboard / Paper, DMR / Recyclables, General Waste
Weekly Volume

Ludden & Mennekes’ Model L range of sealed portable compactors are high quality German built machines, designed for sites with medium to large volumes of waste.

When full, they are collected by a hooklift lorry for transport to disposal, typically holding 8 to 12 tonnes, depending on materials.

Using twin cross-over cylinders for a small footprint and offering an oversized infeed aperture, the Model L can be used to compact any kind of materials, e.g. residual waste, moist waste, commercial waste, organic waste and oversized waste.

With container sizes ranging from 14-24m3, the Model L portable compactor offers high performance, small footprint and low maintenance. Requiring no permanent fixings, the Model L can be sited on tarmac, block-paving, rough ground, etc.

The oscillating steel scrapers and maintenance-free, fully guided press head reduce wear problems, waste build up and cleaning therefore reducing labour, breakdowns and repair costs.

As standard, all Model L portable compactors have:

  • A press force of 34 tonnes
  • A 55 second cycle time
  • Filling level warnings (75% and/or 100%)
  • A very quiet running hydraulic pump
  • High quality steel compaction chamber floor
  • Surface lacquered finish (including corrosion Protection Class C 3)
  • Continuously welded seams = prevents corrosion
  • Oscillating steel scrapers below the ram
  • Front hook – Very quiet running hydraulic pump generating < 63 dB(A)
  • Timer for regulating the operating time of the compactor
  • Oil level and temperature control
  • Pressure control gauge with stopcock
  • Rollers equipped with greaseable bronze bushings
  • Compaction chamber floor made of high quality steel S 355

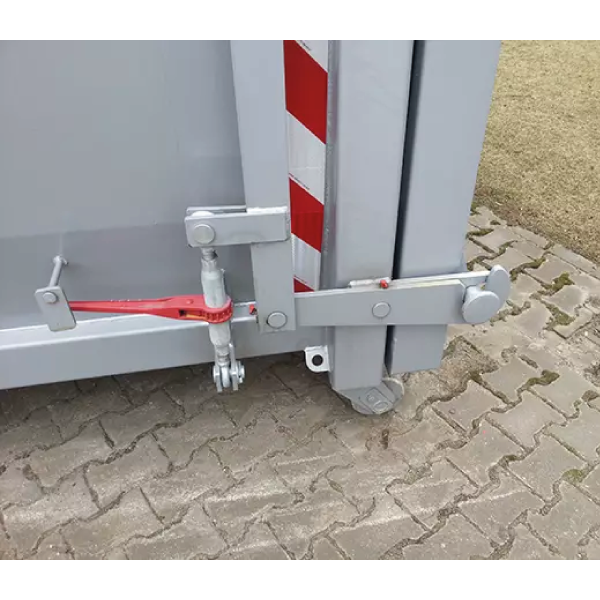

  • Ratchet locking mechanism on the discharge door
  • Surface lacquered in corrosion Protection Class C 3
  • CE and GS approved

They are offered with a choice of side or top hung rear door and optional rubber seals to prevent leaks.

  • Hopper designs to suit various loading methods from ground and dock level
  • Bin tipping systems from ground and dock level for 120-1100L bin sizes
  • Bespoke tipping systems for dolav bins, pallets, cages, etc.
  • Rope and/or chain support block additionally or instead of the standard hook retainer
  • Easy control as programmable self-monitoring electrical control system
  • GSM alarm systems/ GPS module
  • Switching off of compaction ram at front and rear
  • Auto start/stop overfill photocells
  • Water drain with ball valve or screwed plug
  • 50% increased compaction ram
  • Bulky waste design (reinforced design with enlarged filling opening)
  • Remote control in various designs
LM14
(L/GL)
LM16
(L/GL)
LM18
(L/GL)
LM20
(L/GL)
LM22
(L/GL)
LM24
(L/GL)
Container capacity 14m3 16m3 18m3 20m3 22m3 24m3
Clear container length 5340/ 5450mm 5540/ 5750mm 5940/ 6150mm 6150/ 6400mm 6480/ 6950mm 6840/ 7350mm
Max length 5860/ 5970mm 6060/ 5270mm 6460/ 6670mm 6670/ 6920mm 7000/ 7470mm 7360/ 7870mm
Net weight 4570/ 4100kg 4780/ 4320kg 4840/ 4580kg 4980/ 4740kg 5180/ 4940kg 5360/ 5100kg

All compactors in this series

Max height 2600mm
Max width 2500mm
Filling opening H 1465mm
Filling opening W 1890mm
Filling opening L 1760mm
Compaction ram H 580mm
Compaction ram W 1875mm
Compaction ram dipping depth 470mm
Time per working stroke 55 seconds
Volume per stroke 1.8m3
Volume per hour 118m3
Pressing force 34t
Overall weight 15,000kg
