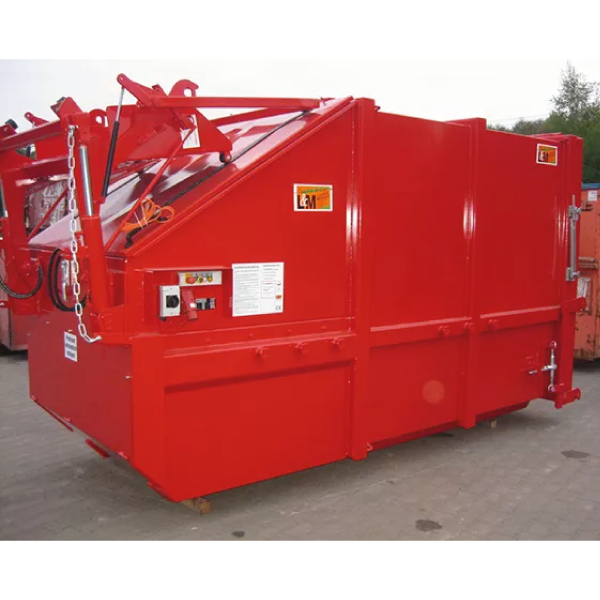

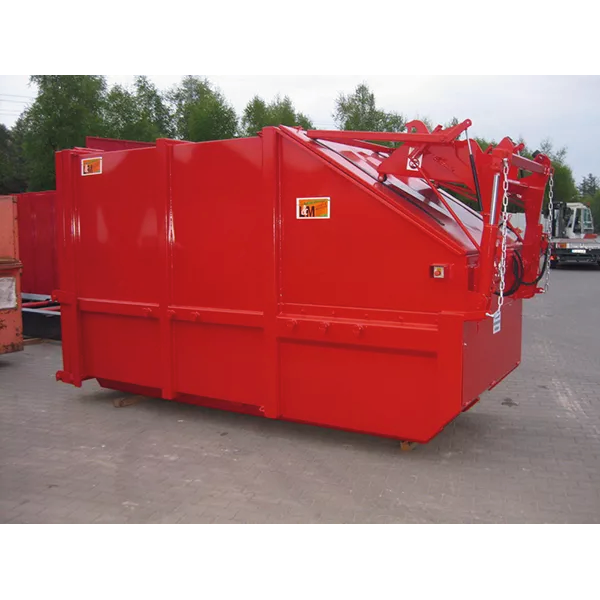

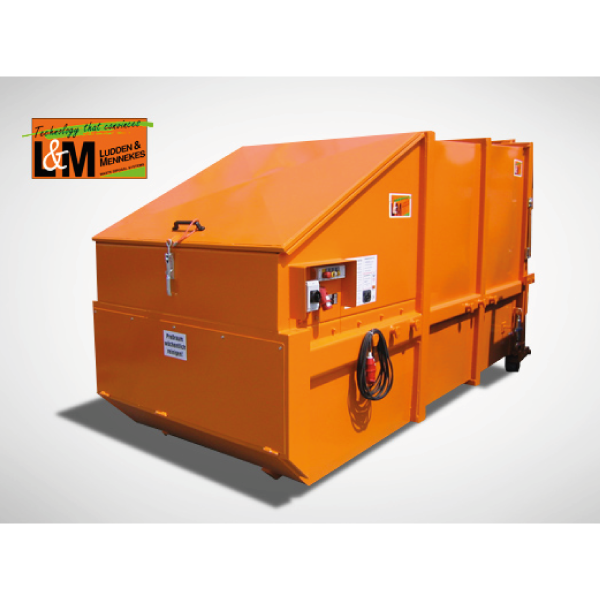

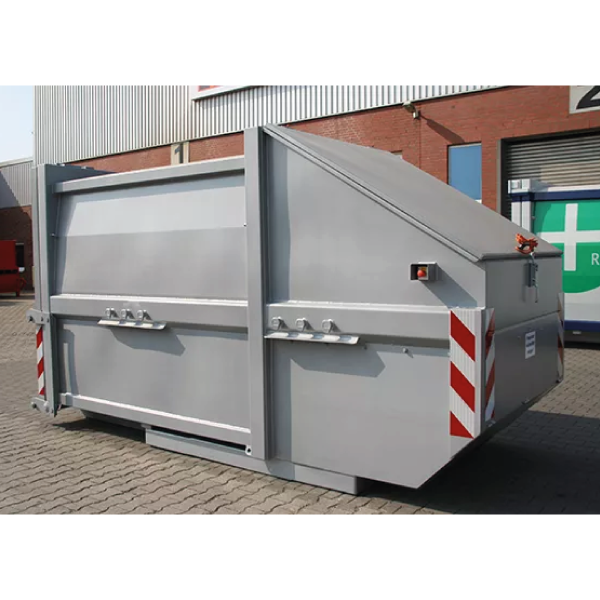

Model AS Skip Portable Compactor

Fully sealed - small footprint - high capacity.

Ludden & Menneke’s Model AS compactor has a small footprint and is ideal for sites with limited space. With its large infeed, fast cycle time and high pressure it will compact medium to large volumes of waste into heavy payloads, enabling significant savings on transport costs and CO2 emissions from repeated waste journeys.

Key Features

  • Horizontal compaction system
  • Fast, efficient and safe waste handling
  • Various loading hopper designs for ground/dock feeding by hand, bin lift, tip skip, etc.
  • Fast 45 second cycle time
  • High 30 tonne compaction force
  • Typically reduces transport by up to 80%
  • Cut your carbon footprint
Compactor Type
Waste Material
Cardboard / Paper, DMR / Recyclables, General Waste
Weekly Volume

Ludden & Menneke’s AS range of sealed portable compactors are high quality, German built machines, designed for sites with medium to large volumes of waste.

They are collected for transport to disposal by skip lift lorries and typically hold 3-5 tonnes of compacted waste, depending on materials.

Using twin cross-over cylinders for a small footprint, the AS can be used to compact any kind of compactable materials, eg. residual waste, moist waste, commercial waste and organic waste.

A stable double sided guide prevents the compaction ram from tilting and/or tipping. Small gaps between the compaction ram and the side walls and the swinging steel stripper in front of the compaction ram ensure that cleaning works in the compaction chamber are hardly necessary.

With container sizes ranging from 6 to 15 m3, the AS portable compactor offers high performance, small footprint and low maintenance.

Requiring no permanent fixings, the AS can be sited on tarmac, block-paving, rough ground etc. The AS-G model has optional clean line container sides suitable for logos and branding.

The oscillating steel scrapers and maintenance-free, fully guided press head reduce wear problems, waste build up and cleaning, therefore reducing labour, breakdowns and repair costs.

As standard, all AS compactors have:

  • A press force of 30 tonnes
  • A fast 45 second cycle time
  • A very quiet running hydraulic pump
  • Filling level warnings (75% and/or 100%)
  • High quality steel compaction chamber floor
  • Surface lacquered finish (including corrosion Protection Class C 3)
  • Continuously welded seams (which prevent corrosion)
  • Pressure monitoring manometer with shut-off valve
  • CEE plug with integrated phase change & main switch
  • Time relay for controlling the runtime of the compactor
  • Declaration of conformity & documentation
  • CE and GS approved

They are offered with a choice of side or top hung rear door and optional rubber seals to prevent leaks.

  • Hopper designs to suit various loading methods from ground and dock level
  • Bin tipping systems from ground and dock level for 120-1100L bin sizes
  • Bespoke tipping systems for dolav bins, pallets, cages, etc.
  • GSM alarm systems/ GPS module
  • Auto start/stop overfill photocells
  • Water drain with ball valve or screwed plug
  • Water spraying device
  • Odour-suppression system
  • Remote control in various designs
Container capacity 6m3 8m3 10m3 12m3 14m3
Clear container length 3330mm 3640mm 4140mm 4505mm 5225mm
Max length 3530mm 3840mm 4340mm 4705mm 5425mm
Net weight 2790/2880kg 2990/3080kg 3190/3280kg 3390/3480kg 3590/3680kg

All compactors in this series

Max height 2460mm
Max width 1995mm
Filling opening H 1505mm
Filling opening W 1655mm
Filling opening L 1165mm
Compaction ram H 720mm
Compaction ram W 1640mm
Compaction ram dipping depth 270mm
Time per working stroke 45 seconds
Volume per stroke 1.2m3
Volume per hour 96m3
Pressing force 30t
Overall weight 12,000kg
