Designed to be the safest, fastest and easiest vertical baler to use on the market.

Key Features

  • Maximum Rebates with Mill Size bales
  • 24 tonne UK lorry loads achieved
  • Easy to use
  • Bale full indicator for uniform bales
  • Push-button controls
  • Two-handed control for safe bale ejection (no manual handling)
  • 24/7 Support & Our 24/7 Helpdesk
  • Diagnostics for quick fault finding to keep you operational
  • Safe Operation
  • Safe bale door latch system & interlocks to prevent access
  • Flexible machine placement
  • In or outdoor installation

Bale Weights
320kg - 350kg
Weekly Volume
Material To Recycle
Cardboard / Paper, Plastic / Film

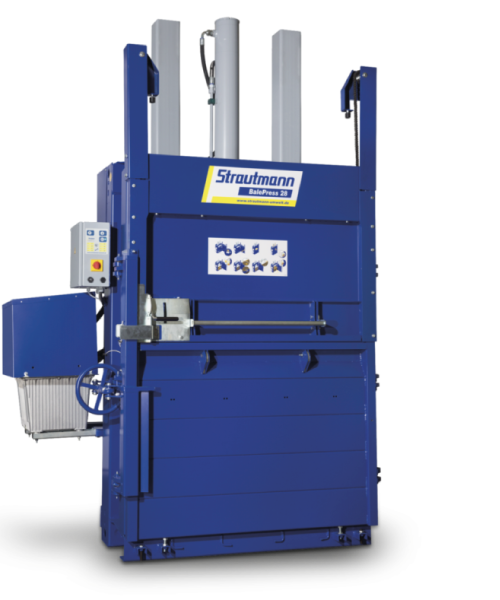

The BP28 vertical baler model is a high quality, German built machine, designed to be safe, fast and easy to use.

Loading large size or high volumes of materials is safe and easy through the large feed opening and with 28t pressure it produces euro-pallet size bales weighing 320-350kg, depending on material.

The BP28’s 19 second cycle time and a number of labour-efficient, patented systems guarantee fast, efficient operation, a long working life and lowest lifetime costs.

In Summary

  • Proven manufacturer designed for 50,000 operating hours
  • Large infeed aperture
  • Bales up to 350kg – 21t loads achieved
  • PowerSave® low energy 4kw motor
  • TopPlus® ram guiding system
  • CircleSystem® hold down latches inside the press chamber
  • EasyTie® for quick, easy wire tie off
  • Auto cycle down and return
  • Fast cycle time of 19 seconds
  • Sliding door for safe, comfortable loading
  • Optional QuickDoor®
  • Bale full indictor for uniform bales
  • PLC controls with error diagnostics
  • Safe bale door latch system & interlocks
  • Two handed control for safe bale ejection
  • Space saving design
  • In or outdoor installation

This machine comes with the option of wire or strap tying for your bales, both of which we can supply. Take a look at our Supplies section for more information.

BP28 Strap BP28 Wire BP28 Strap QD BP28 Wire QD
Transport dimensions (W x D x H) 1947 x 1160 x 3043mm (2132mm lowered) 2045 x 1161 x 3043mm (2249mm lowered) 2045 x 1163 x 3160mm (2249mm lowered) 1952 x 1163 x 3160mm( 2132mm min lowered)


Power supply 400V, 50Hz, 16A
Electrical power 4kW
Pressing force 28t
Press stroke 890mm
Machine weight 1550kg
Machine dimensions (L x W x H) 1947 x 1158 x 3043mm
Filling opening 1190 x 555mm
Cycle time 19 seconds
Bale weight 320-400kg*
Bale size (L x W x H) 1200 x 800 x 1100mm
Bale tying Strapping with four twines/wires


*The bale size and bale weights are approximate dimensions and depend on the material. The information refers to cardboard packaging (quality 1.04). Information about other materials such as LDPE/polythene is available on request.
