HKV bin lifters and tippers

Ludden & Mennekes range of bin lifters are reliable, high quality products, designed and manufactured by a globally renowned company.

Standard control elements

  • ‘EMERGENCY STOP’ push-button on the control cabinet (with attached lifting/tipping devices, this is executed via the control of the overriding plant)
  • ‘ON / OFF’ main switch (lockable with optional padlock) on the control cabinet (with attached lifting/tipping devices, this is executed via the control of the overriding plant)
  • ‘Release tipper’ push-button on the control cabinet
  • ‘Tipper Up/Down’ hand lever next to the control cabinet

L&M bin tippers (HKV) are used for fast and easy emptying of large waste containers (MGB) with capacities of 120-1100L. As a standard, the bin tippers come in three different models for lifting weights of 400kg, 800kg, and 1500kg.

Permanently attached model

The bin tipper is firmly connected to the filling opening of the machine at the front or side and is driven by its drive unit

Stationary/Static Model

The bin tipper is firmly anchored to the ground in front of a portable compactor or a stationary compactor.

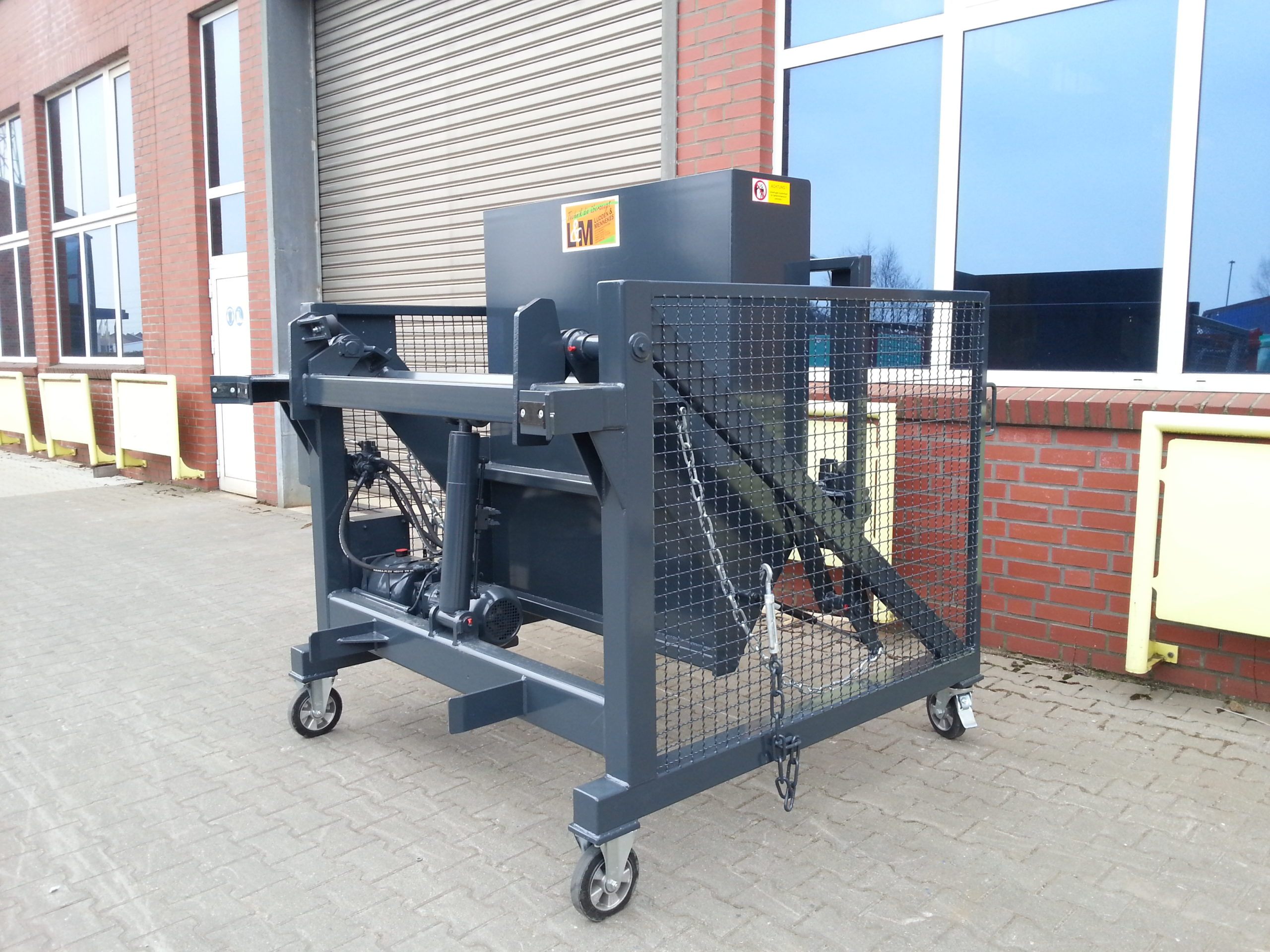

Mobile Model

The mobile bin tipper stands in front of a portable compactor or a stationary compactor.

Optional additions:

  • Electrical two-handed control
  • Two-handed control as per DIN EN 574
  • Preparation for a weighing system
  • Several protective grids and cages
  • Automatic lid opener for larger waste containers (MGB) with rolling cover
  • Remote controls
  • Transversally movable design with runner rails and supporting frame
  • Free running rollers
